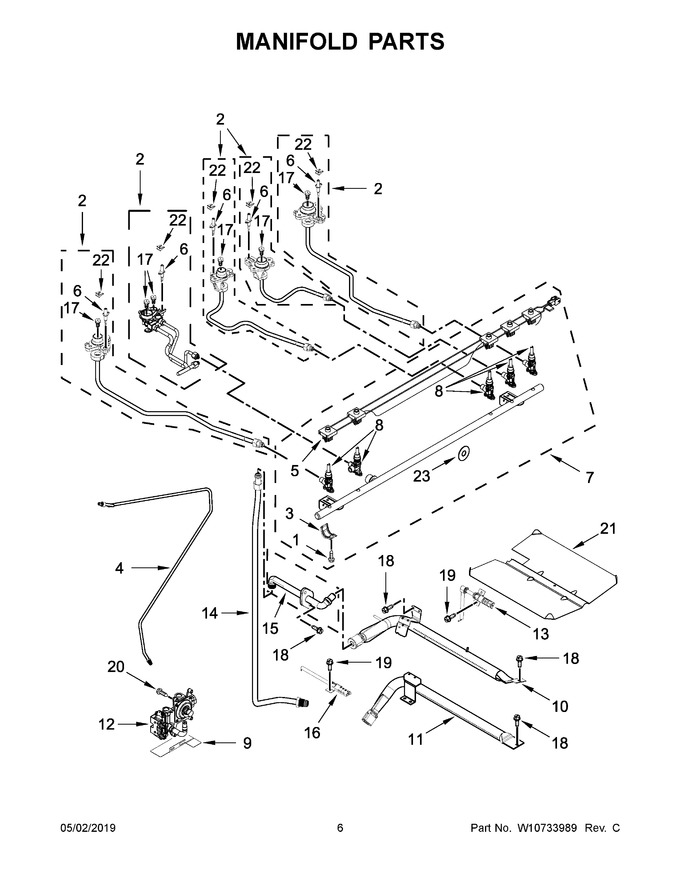

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11666001		Screw   (Replaces: W10246216)				$ 14.28
2	W10552135		Assembly, Orifice (19k) (left Front)				$ 255.58
3	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 22.75
4	W10432252		Tube, Gas Supply				$ 82.71
5	W10468433		Harness, Spark Switch			Immediately	$ 118.89
6	W11611678		Electrode (left Front)   (Replaces: W10496874)			Immediately	$ 32.98
7	W11602206		Assembly, Manifold   (Replaces: W10790618)			Immediately	$ 319.10
8	W10566038		Valve, Gas (dual) (left Front)				$ 344.11
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11676566		Burner, Broiler   (Replaces: W10439242)				$ 94.98
11	W10764654		Burner, Bake   (Replaces: W10680035)			Immediately	$ 91.65
12	W10861656		Valve, Regulator   (Replaces: W10554066)			Immediately	$ 334.54
13	WPW10324262		Igniter, Bake   (Replaces: W10324262)			Immediately	$ 109.83
14	W10306050		Tube, Broil Supply (broiler Fitting To Valve)				$ 189.82
15	W10583216		Fitting, Broil Burner				$ 95.85
16	WPW10333842		Electrode, Broil   (Replaces: W10333842)			Immediately	$ 104.12
17	W10566082		Orifice (19k) (left Front)			Immediately	$ 97.59
18	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
19	W11684507		Screw   (Replaces: 3196385)				$ 14.27
20	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
21	3601P336-45		Baffle, Broil Burner				$ 227.09
22	W10575401		Clip, Spring (electrode)			Immediately	$ 11.30
23	W10140571		Seal, Switch Shaft				$ 7.70
17A	W10819958		Orifice (1.2k) (left Front)   (Replaces: W10256132)				$ 97.77
17B	W10756981		Orifice (5k) (left Rear)   (Replaces: W10515054)			Immediately	$ 17.91
17C	W10821182		Orifice (1.8mm) (right Front)   (Replaces: W10434277)			Immediately	$ 93.46
17D	W11752198		Orifice (9.2k) (right Rear)   (Replaces: W10657949)				$ 33.30
17E	W10657947		Orifice (8k) (center)				$ 22.40
2A	W10552132		Assembly, Orifice (5k) (left Rear)				$ 181.95
2B	W10552131		Assembly, Orifice (15k) (right Front)				$ 204.18
2C	W10552130		Assembly, Orifice (9.2k) (right Rear)				$ 203.42
2D	W10552137		Assembly, Orifice (8k) (center)				$ 220.64
6A	W11050467		Electrode (left Rear)   (Replaces: W10464799)			Immediately	$ 66.18
6B	W11447374		Electrode (right Front & Center)   (Replaces: W10496870)			Immediately	$ 46.10
6C	W11220383		Electrode (right Rear)   (Replaces: W10496872)			Immediately	$ 66.18
8A	W10831589		Valve, Gas (left Rear)				$ 278.21
8B	W11223016		Valve, Gas (right Front)   (Replaces: W10566042)				$ 264.72
8C	W11163975		Valve, Gas (right Rear & Center)   (Replaces: W10566050)			Immediately	$ 264.72
NI	W10909678		Kit, Lp Conversion   (Replaces: W10681410)			Immediately	$ 121.50
NI	W11087486		Kit, Lp Conversion (bake/broil)   (Replaces: W10566535)			Immediately	$ 117.95
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WPW10182767		Tie, Manifold Wire   (Replaces: W10182767)				$ 7.30
NI	WPW10170531		Spuds, Lp Gas   (Replaces: W10170531)				$ 107.14
NI	W11126051		Kit, Lp Bake And Broil   (Replaces: W10566537)				$ 129.04
