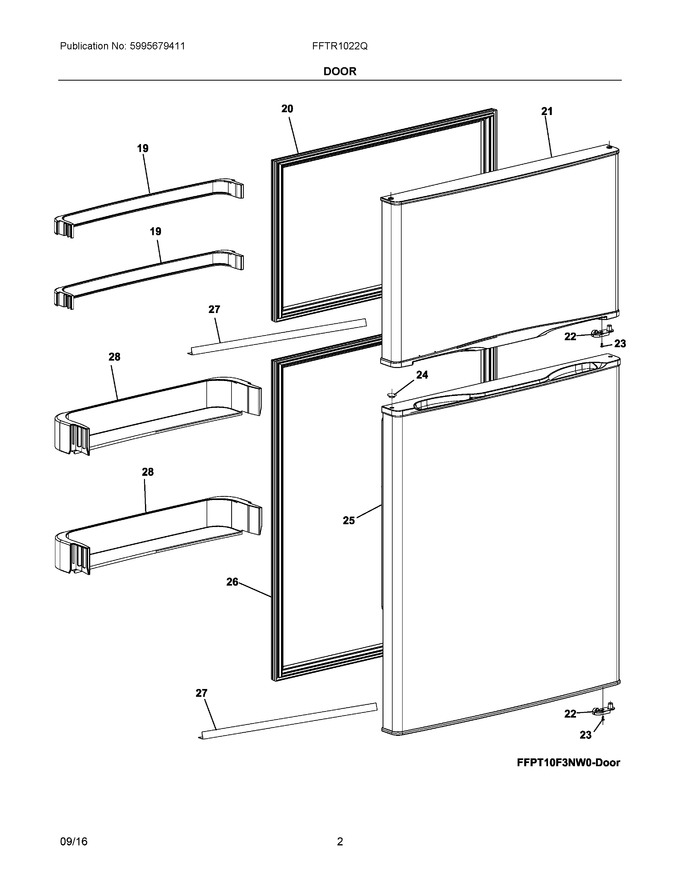

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	5304490965		Rack, Door, Freezer		Appelez-nous	-
20	5304490966		Gasket, Frzr Door, White				$ 97.29
21	5304490967		Door, Frzr, White, Assy				$ 284.34
22	5304490968		Closer, Door Stop, W/hinge Pin				$ 31.76
23	5304491047		Screw, (2)				$ 12.02
24	5304490969		Plug, Hinge Hole, White				$ 13.39
25	5304490970		Door, Refr, White, Assy		Appelez-nous	-
26	5304490971		Gasket, Refr Door, White			Immediately	$ 338.50
27	5304491326		Seal, Inner Door				$ 26.09
28	5304490973		Bin, Refr Door, Large				$ 75.23
