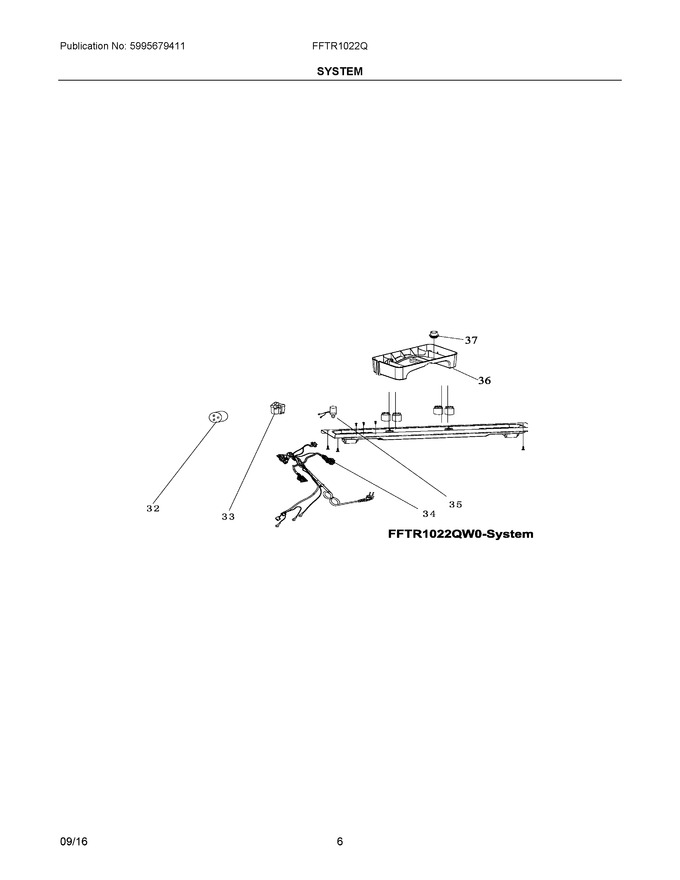

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 32 | 5304491324 | Overload Protector, Compressor |
|
$ 33.97 | |||||
| 33 | 5304491322 | Starter, Ptc |
|
$ 52.24 | |||||
| 34 | 5304491328 | Power Cord, Electric |
|
$ 159.47 | |||||
| 35 | 5304491323 | Capacitor |
|
- | |||||
| 36 | 5304503880 | Drain Pan |
|
$ 70.04 | |||||
| 37 | 5304507516 | Valve, Duck Bill, Rubber, Drain Tube |
|
$ 11.34 |
