SELECT A DIAGRAM

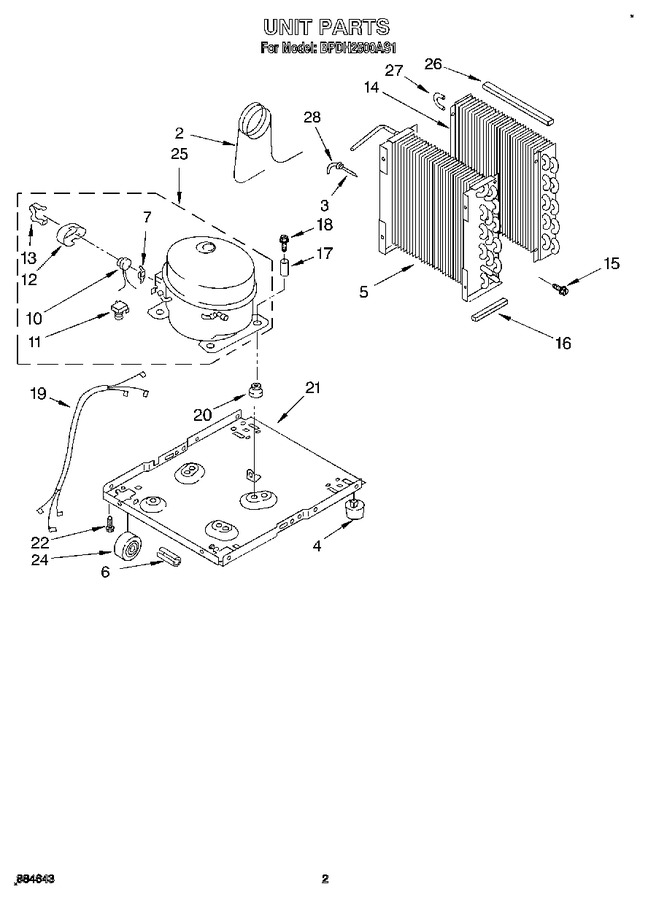

02 - Unit


03 - Air Flow And Control


04 - Cabinet


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	1164204		Tube, Restrictor		Appelez-nous	-
3	1162037		Strainer		Appelez-nous	-
4	951886		Glide (2)		Appelez-nous	-
5	1164219		Condenser		Appelez-nous	-
6	489015		Roll Pin-2.0 Lg		Appelez-nous	-
7	950061		Spring, Overload (production)		Appelez-nous	-
10	1163837		Overload (production)		Appelez-nous	-
10	4318051		Overload (service)		Appelez-nous	-
11	4318052		Relay, Start (service)		Appelez-nous	-
11	1163838		Relay, Start (production)		Appelez-nous	-
12	950055		Cover, Terminal (production)		Appelez-nous	-
12	4318053		Cover Terminal (service)		Appelez-nous	-
13	950056		Retainer, Cover (production)		Appelez-nous	-
13	549086		Retainer, Cover (service)		Appelez-nous	-
14	1161199		Evaporator		Appelez-nous	-
15	488624		Screw, 8 X 3/8 (4)		Appelez-nous	-
16	1162372		Seal		Appelez-nous	-
17	646498		Sleeve, Mounting		Appelez-nous	-
18	1163835		Screw, 1/4-28 X 1`` (3)		Appelez-nous	-
19	484136		Harness, Wire		Appelez-nous	-
20	646499		Grommet (4)		Appelez-nous	-
21	1157584		Base		Appelez-nous	-
22	WPW10141604		Screw, 8-32 X 3/8   (Replaces: 487871)				$ 8.85
24	998726		Caster (2)		Appelez-nous	-
25	1163836		Compressor, (complete Assembly)		Appelez-nous	-
26	1162348		Seal, Evaporator Top		Appelez-nous	-
27	854624		Bend, Return		Appelez-nous	-
28	855199		Bend, Return		Appelez-nous	-
	LIT1164210		Sheet, Tech		Appelez-nous	-
	LIT1164212		Wiring Diagram		Appelez-nous	-
	LIT1162709		Use & Care Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
