02 - Unit

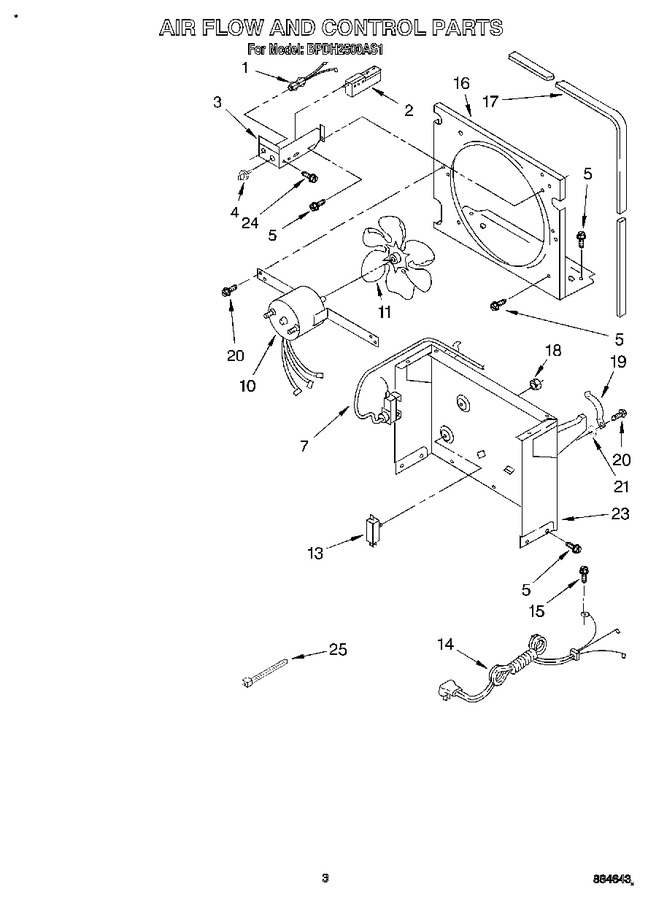

03 - Air Flow And Control
04 - Cabinet
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1158419 | Light, Indicator |
|
- | |||||
| 2 | 1162578 | Humidistat, Control |
|
- | |||||
| 3 | 951284 | Bracket, Control |
|
- | |||||
| 4 | 1162670 | Knob, Control |
|
- | |||||
| 5 | WP489069 | Screw, Sm No.8 X 1/2a (Replaces: 488480) |
|
Immediately | $ 8.40 | ||||
| 7 | 1163280 | Thermostat, Deicer |
|
- | |||||
| 10 | 1164208 | Motor, Fan |
|
- | |||||
| 11 | 949645 | Blade, Fan |
|
- | |||||
| 13 | 999747 | Switch, Water Level Control |
|
- | |||||
| 14 | 1155670 | Cord, Appliance |
|
- | |||||
| 15 | WPW10141604 | Screw, 8-32 X 3/8 (Replaces: 487871) |
|
$ 8.85 | |||||
| 16 | 998779 | Plate, Orifice |
|
- | |||||
| 17 | 1162704 | Seal |
|
- | |||||
| 18 | 489001 | Palnut, 3/8-32 |
|
- | |||||
| 19 | 1161718 | Spring, Water Level |
|
- | |||||
| 20 | WP488163 | Screw, 8 X 1/2a (Replaces: 488248) |
|
$ 7.92 | |||||
| 21 | 489029 | Washer (repair) (.062 Thickness) |
|
- | |||||
| 21 | 489083 | Washer, Repair (.030 Thickness) |
|
- | |||||
| 23 | 1163800 | Support |
|
- | |||||
| 24 | WP3177991 | Screw, 8-18x1/4 (Replaces: 1162513) |
|
Immediately | $ 7.55 | ||||
| 25 | WPW10339879 | Tie, Cable (3) (Replaces: 602851) |
|
$ 8.30 |
