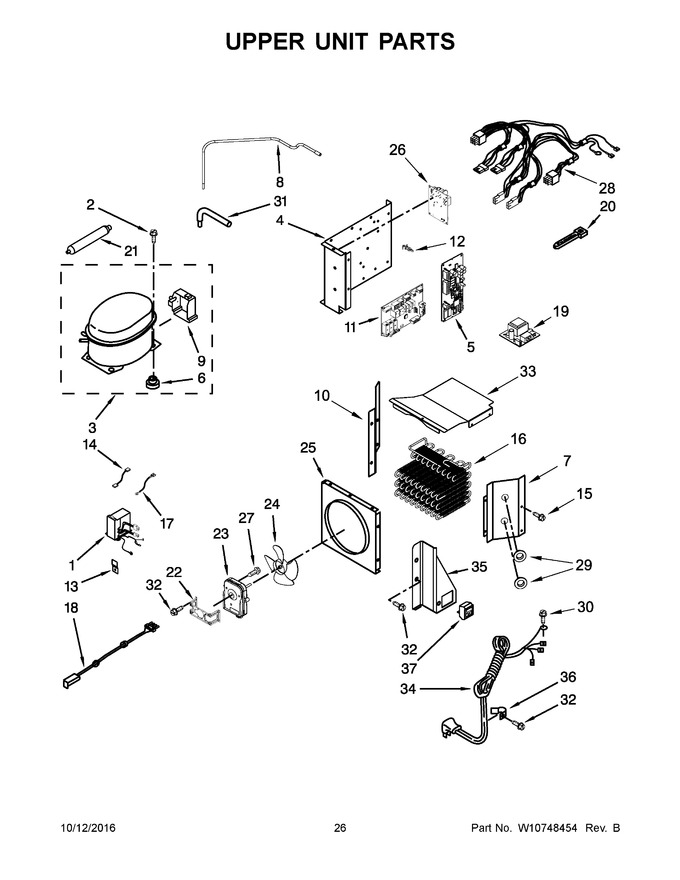

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W11573593 |
 |
Assembly, Inverter Box (Replaces: W10645666) |
|
|
|
$ 223.37 |
|
|
| 2 |
876811 |
 |
Screw (Replaces: 489373) |
|
|
|
$ 7.79 |
|
|
| 3 |
W10720770 |
|
Compressor (Replaces: W10653005) |
|
|
|
$ 903.29 |
|
|
| 4 |
WPW10321056 |
|
Housing, Control Board (Replaces: W10321056) |
|
|
|
$ 126.60 |
|
|
| 5 |
WP2318054 |
 |
Control, Electronic (Replaces: 2318054) |
|
|
Immediately |
$ 314.13 |
|
|
| 6 |
876811 |
|
Grommet (Replaces: 1100826) |
|
|
|
$ 7.79 |
|
|
| 7 |
WPW10525179 |
|
Support, Condenser (right Hand) (Replaces: W10525179) |
|
|
|
$ 110.88 |
|
|
| 8 |
W10648264 |
|
Tube, Heat Loop Transition |
|
|
|
$ 77.11 |
|
|
| 9 |
2215676 |
|
Cover, Terminal |
|
|
|
$ 94.36 |
|
|
| 10 |
WPW10525177 |
|
Support, Condenser (left Hand) (Replaces: W10525177) |
|
|
|
$ 110.88 |
|
|
| 11 |
WPW10427079 |
 |
Board, Control (Replaces: W10427079) |
|
|
|
$ 421.25 |
|
|
| 12 |
WP2203075 |
|
Spacer (Replaces: 2203075) |
|
|
Immediately |
$ 18.81 |
|
|
| 13 |
2256328 |
|
Bracket, Inverter Mounting |
|
Appelez-nous
|
- |
|
|
|
| 14 |
WPW10483905 |
|
Jumper, Inverter (Replaces: W10483905) |
|
|
|
$ 119.45 |
|
|
| 15 |
WP489069 |
 |
Screw (Replaces: 1157158) |
|
|
Immediately |
$ 8.40 |
|
|
| 16 |
W10591457 |
|
Condenser |
|
|
|
$ 248.55 |
|
|
| 17 |
WPW10495645 |
|
Ground, Inverter (Replaces: W10495645) |
|
|
|
$ 12.69 |
|
|
| 18 |
2310207 |
|
Assembly, Condenser Fan Wire |
|
Appelez-nous
|
- |
|
|
|
| 19 |
WP2259350 |
 |
Board, Power Supply (Replaces: 2259350) |
|
|
|
$ 145.35 |
|
|
| 20 |
WPW10339879 |
 |
Tie, Wire (Replaces: 2155774) |
|
|
|
$ 8.30 |
|
|
| 21 |
WPW10143759 |
 |
Drier (Replaces: W10175593) |
|
|
Immediately |
$ 30.78 |
|
|
| 22 |
W10414681 |
|
Bracket, Fan Motor |
|
|
|
$ 79.53 |
|
|
| 23 |
W11127829 |
 |
Motor, Condenser Fan (Replaces: W10527155) |
|
|
Immediately |
$ 185.05 |
|
|
| 24 |
WPW10139483 |
 |
Blade, Fan (Replaces: W10139483) |
|
|
|
$ 99.82 |
|
|
| 25 |
W10415670 |
|
Orifice, Fan |
|
Appelez-nous
|
- |
|
|
|
| 26 |
WPW10356040 |
 |
Control, Electronic (Replaces: W10356040) |
|
|
Immediately |
$ 322.82 |
|
|
| 27 |
WP8533993 |
|
Screw (Replaces: W10146359) |
|
|
|
$ 11.21 |
|
|
| 28 |
W10427091 |
|
Assembly, Unit Wire |
|
Appelez-nous
|
- |
|
|
|
| 29 |
W10587113 |
|
Grommet |
|
Appelez-nous
|
- |
|
|
|
| 30 |
00487294 |
|
Screw (Replaces: 487294) |
|
|
|
$ 175.09 |
|
|
| 31 |
W10528578 |
|
Tube, Process |
|
|
|
$ 39.82 |
|
|
| 32 |
W11624204 |
|
Screw (Replaces: 486194) |
|
|
|
$ 14.72 |
|
|
| 33 |
W10525175 |
|
Cover, Condenser Support |
|
|
|
$ 72.38 |
|
|
| 34 |
WP2310251 |
|
Cord, Power (Replaces: 2310251) |
|
|
|
$ 88.94 |
|
|
| 35 |
W10321055 |
|
Bracket, Control Assembly |
|
Appelez-nous
|
- |
|
|
|
| 36 |
549193 |
|
Clamp, Power Cord |
|
|
|
$ 14.06 |
|
|
| 37 |
WP2266802 |
 |
Switch, Power Disconnect (Replaces: 2266802) |
|
|
|
$ 109.08 |
|
|
| NI |
SF5538 |
 |
Valve, Access (Replaces: 978027) |
|
|
|
$ 21.64 |
|
|
| NI |
978026 |
 |
Valve, Access |
|
|
Immediately |
$ 134.49 |
|
|
| NI |
WP978025 |
 |
Valve, Access (Replaces: 978025) |
|
|
Immediately |
$ 110.51 |
|
|
| NI |
978028 |
|
Valve, Access |
|
Appelez-nous
|
- |
|
|
|
| NI |
978029 |
 |
Valve, Access |
|
|
|
$ 93.85 |
|
|
| NI |
978030 |
|
Valve, Access |
|
|
|
$ 137.25 |
|
|
| NI |
876764 |
 |
Valve, Access |
|
|
Immediately |
$ 95.92 |
|
|
| NI |
N/P |
|
Refrigerant Charge 5.75 Oz. (r-134a) |
|
Appelez-nous
|
- |
|
|
|
View Diagram in Separate Window
Print Part List
