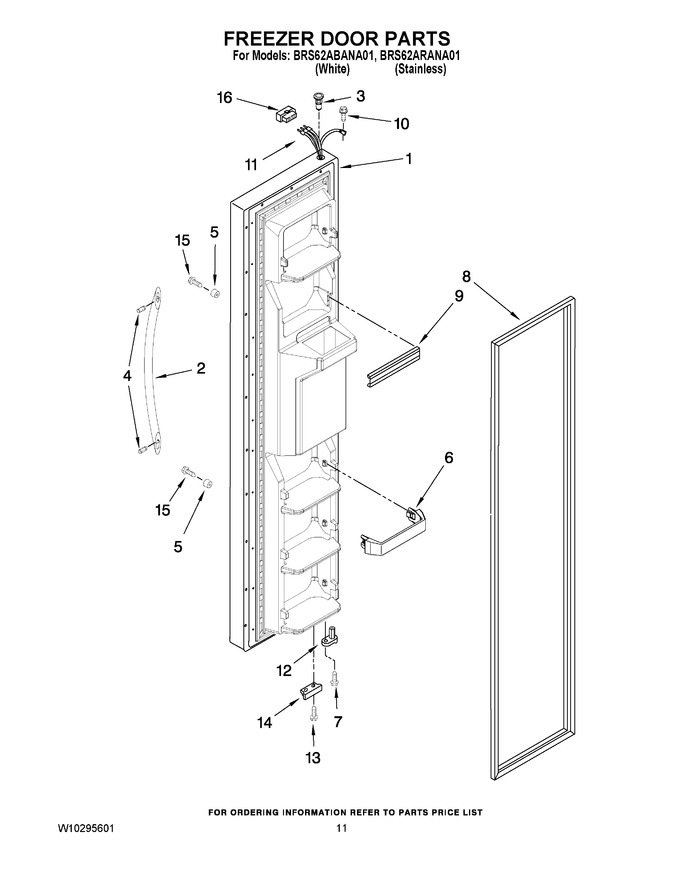

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10158842		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
1	W10158847		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2254608S		Handle		Appelez-nous	-
3	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
4	W11366418		Screw   (Replaces: W10114271)			Immediately	$ 15.79
5	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
6	W10154907		Trivet (4)		Appelez-nous	-
7	W10029760		Screw		Appelez-nous	-
8	2159072		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309604)				$ 323.60
8	W10136733		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2327162)				$ 358.98
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 24.27
10	WP489128		Screw   (Replaces: 8281149)				$ 11.40
11	2311642		Wire Harness (white)				$ 228.82
11	2187272		Wire Harness (stainless)		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: W10029750)				$ 11.41
14	2321218W		Bracket, Door Stop (white)		Appelez-nous	-
14	W10185566		Bracket, Door Stop (silver)		Appelez-nous	-
15	W10029730		Screw		Appelez-nous	-
16	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
