SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

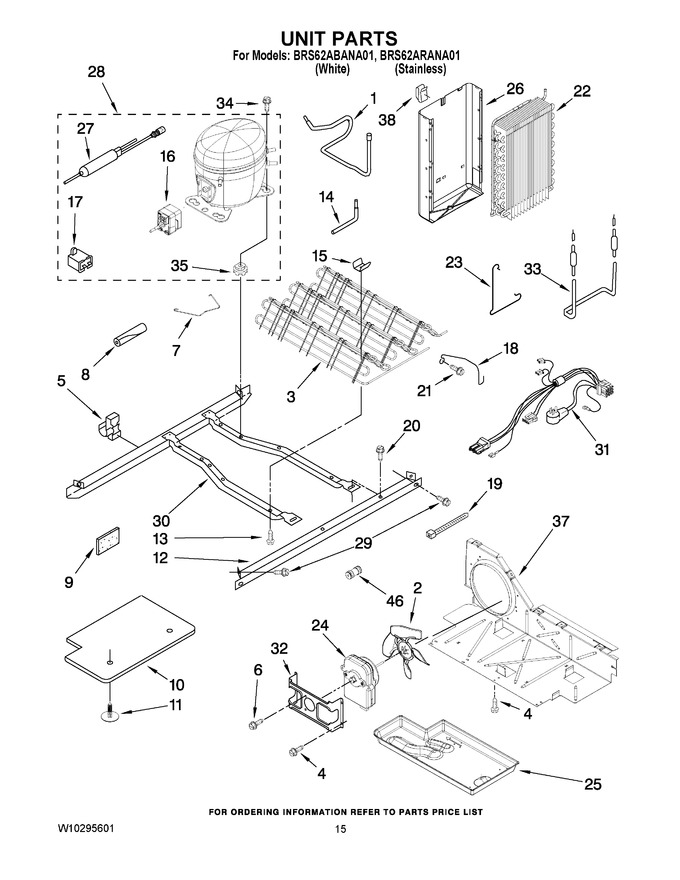

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2325479		Process Tube		Appelez-nous	-
2	W11458267		Fan Blade   (Replaces: 2225834)			Immediately	$ 23.99
3	2324712		Condenser Assembly (also Order No.1)   (Replaces: W10222348)				$ 308.05
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	2208280		Clip, Wire		Appelez-nous	-
6	8281160		Screw		Appelez-nous	-
7	2223313		Clip, Retaining		Appelez-nous	-
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
9	W11553819		Insulation, Sound   (Replaces: 2215468)			Immediately	$ 14.07
10	W11115203		Unit Cover, Bottom   (Replaces: 2304898)				$ 517.91
11	489396		Clip				$ 10.72
12	WPW10196323		Unit Mounting Rail   (Replaces: W10196323)				$ 118.94
13	W11544659		Screw   (Replaces: 8281232)				$ 13.67
14	2205764		Tube Suction				$ 84.93
15	W10683556		Clip, Condenser (2)   (Replaces: 2311725)				$ 18.46
16	WP2304885		Start Device, Combination (start Relay And Overload) For Production Compressor Only (production)   (Replaces: 2320153)				$ 179.47
16	WP2304885		Start Device, Combination (start Relay And Overload) For Production Compressor Only (service)   (Replaces: 2304885)				$ 179.47
17	WPW10662129		Capacitor (service Only)   (Replaces: 2264017)			Immediately	$ 58.86
18	1105612		Guard, Fan				$ 40.58
19	WPW10339879		Strap   (Replaces: 2263990)				$ 7.90
20	WP489427		Screw   (Replaces: 489427)				$ 7.47
21	WP489478		Screw   (Replaces: 489478)				$ 7.75
22	WP2188822		Evaporator   (Replaces: 2188822)			Immediately	$ 339.85
23	2161324		Clamp		Appelez-nous	-
24	W10124096		Fan, Motor   (Replaces: 2188729)			Immediately	$ 112.20
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	WPW10194474		Heat Shield   (Replaces: W10194474)				$ 119.53
27	WPW10143759		Drier (service)   (Replaces: 2317845)			Immediately	$ 30.78
27	WPW10143759		Drier (production)   (Replaces: W10177049)			Immediately	$ 30.78
28	W10139460		Compressor (includes Items 16, 17, 27, & 35) (also Order 876765 Tube Kit)   (Replaces: W10120460)				$ 491.28
29	WP4373559		Union   (Replaces: 2209709)				$ 77.35
30	2304903		Unit Mounting Frame				$ 233.03
31	2187782		Unit, Harness (includes Power Cord)		Appelez-nous	-
32	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.31
33	W10130266		Heater, Defrost		Appelez-nous	-
34	876811		Screw   (Replaces: 489373)				$ 7.42
35	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
35	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
36	489340		Screw (5)		Appelez-nous	-
37	W10163483		Air Baffle		Appelez-nous	-
38	2155547		Clip, Heat Shield		Appelez-nous	-
NI	978028		Valve, Access (1/2)		Appelez-nous	-
NI	978029		Valve Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
NI	N/P		Refrigerant Charge (5.0 Oz. (r-134a))		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
