01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts

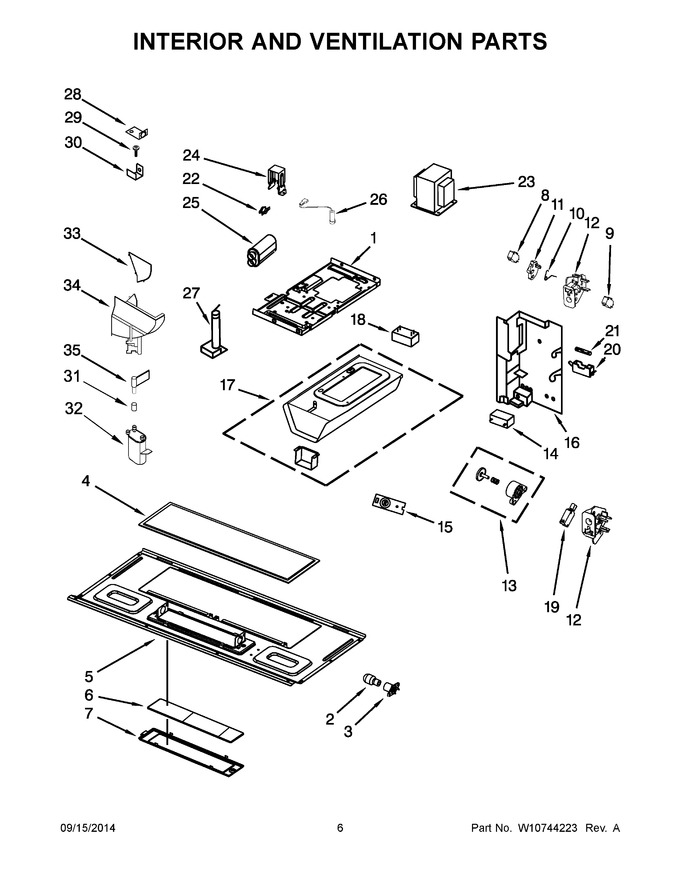

04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10248270 | Chassis |
|
- | |||||
| 2 | 8206232A | Lamp 40 Watt (Replaces: 8206232) |
|
Immediately | $ 7.34 | ||||
| 3 | W10210871 | Holder, Lamp |
|
Immediately | $ 6.39 | ||||
| 4 | W10208631A | Filter, Grease (Replaces: W10208631) |
|
Immediately | $ 32.59 | ||||
| 5 | W10245196 | Plate, Bottom |
|
$ 244.83 | |||||
| 6 | WPW10210875 | Glass, Lamp (Replaces: W10210875) |
|
$ 334.23 | |||||
| 7 | W10210873 | Holder, Glass |
|
$ 5.75 | |||||
| 8 | W10211972 | Switch, Micro |
|
Immediately | $ 52.40 | ||||
| 9 | W10269458 | Switch, Micro (Replaces: W10211973) |
|
Immediately | $ 40.11 | ||||
| 10 | W10156812 | Spring, Interlock |
|
Immediately | $ 12.14 | ||||
| 11 | W10562613 | Plate, Cam (Replaces: W10156811) |
|
Immediately | $ 17.83 | ||||
| 12 | WP8206419 | Support, Interlock (top) (Replaces: 8206419) |
|
Immediately | $ 22.37 | ||||
| 13 | W10197758 | Assembly, Piston |
|
Immediately | $ 88.91 | ||||
| 14 | W11405831 | Capacitor, Hood Motor (Replaces: W10245191) |
|
$ 42.25 | |||||
| 15 | W10163422 | Thermistor |
|
$ 171.14 | |||||
| 16 | W10640884 | Air Guide, Lower |
|
$ 25.63 | |||||
| 17 | W10310720 | Chassis Assembly |
|
- | |||||
| 18 | W10245190 | Resistor, Cement |
|
- | |||||
| 19 | W10211974 | Switch, Micro |
|
Immediately | $ 60.44 | ||||
| 20 | W10245194 | Holder, Fuse (Replaces: W10250232) |
|
$ 83.15 | |||||
| 21 | W11707984 | Fuse (Replaces: W10138793) |
|
Immediately | $ 45.85 | ||||
| 22 | W10478211 | Cutout, Thermal |
|
$ 73.34 | |||||
| 23 | W10733411 | Transformer, High Voltage |
|
$ 218.99 | |||||
| 24 | W10532063 | Bracket, Capacitor |
|
$ 28.28 | |||||
| 25 | W10850446 | Capacitor, High Voltage (Replaces: W10343300) |
|
$ 186.54 | |||||
| 26 | W11817793 | Diode, High Voltage (Replaces: W10492278) |
|
- | |||||
| 27 | W10245188 | Support, High Voltage Diode |
|
$ 25.80 | |||||
| 28 | W10259248 | Cover, Thermostat |
|
- | |||||
| 29 | W10599629 | Thermostat, Convection (Replaces: 8206068) |
|
$ 34.13 | |||||
| 30 | 8206223 | Clip |
|
$ 51.91 | |||||
| 31 | W10259216 | Screw |
|
- | |||||
| 32 | W10458325 | Actuator |
|
$ 92.78 | |||||
| 33 | W10248274 | Plate, Housing |
|
- | |||||
| 34 | W10248276 | Housing, Valve |
|
- | |||||
| 35 | W10248277 | Valve |
|
- | |||||
| 12A | WPW10156813 | Support, Interlock (bottom) (Replaces: W10156813) |
|
Immediately | $ 8.07 |
