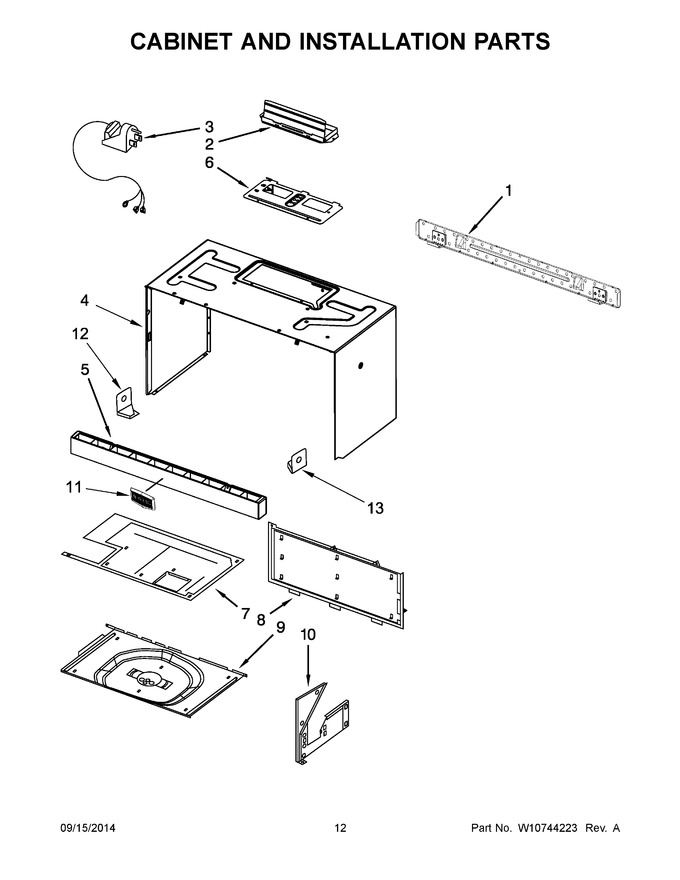

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting   (Replaces: W10440498)			Immediately	$ 24.69
2	W10843943		Damper   (Replaces: W10725323)			Immediately	$ 73.04
3	W10708076		Cord, Power   (Replaces: W10654511)				$ 21.56
4	WPW10244765		Case, Outer (white)   (Replaces: W10244765)				$ 231.26
5	W10527308		Grille, Vent (white)				$ 93.71
6	W10210832		Cover, Hood Fan Motor				$ 6.68
7	W10248268		Assembly, Top Plate		Appelez-nous	-
8	W10248267		Assembly, Back Plate		Appelez-nous	-
9	W10249318		Assembly, Bottom Plate		Appelez-nous	-
10	W10248279		Assembly, Right Plate		Appelez-nous	-
11	W10286845		Badge				$ 35.23
12	W11026306		Vent Holder, Left (white)   (Replaces: W10703284)			Immediately	$ 7.55
13	W10703282		Vent Holder, Right (white)				$ 11.00
12A	W10830163		Vent Holder, Left (black)   (Replaces: W10703285)				$ 14.21
13A	W10810989		Vent Holder, Right (black)   (Replaces: W10703283)				$ 10.22
4A	WPW10245176		Case, Outer (black)   (Replaces: W10245176)				$ 231.26
5A	W10527310		Grille, Vent (black)				$ 98.40
5B	W10259232		Grille, Vent (stainless)			Immediately	$ 169.06
NI	W10190018		Miscellaneous Parts, Template, Upper			Immediately	$ 7.55
NI	WP8169704		Miscellaneous Parts, 1/4-20x3" Panhead Screw   (Replaces: 8169704)			Immediately	$ 13.35
NI	W10553872		Miscellaneous Parts, Harness, Main		Appelez-nous	-
NI	W10553852		Miscellaneous Parts, Harness, Wire Turntable Motor And Hood Lamp		Appelez-nous	-
NI	W10539840		Miscellaneous Parts, Harness, Pcba Ground Wire				$ 25.08
NI	8205948		Miscellaneous Parts, Installation, Hardware				$ 26.90
