01 - Cover Sheet

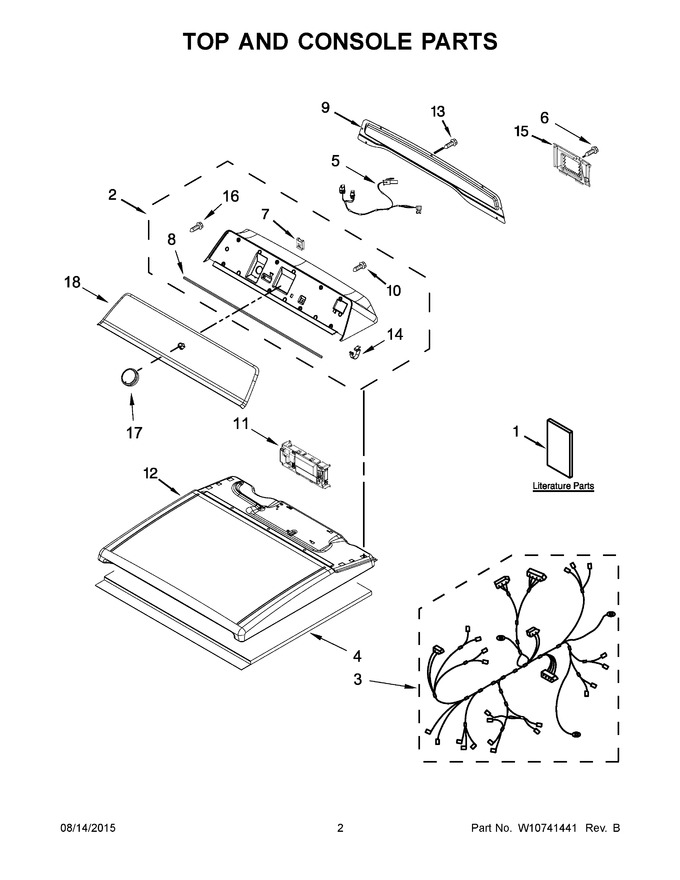

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10725269 | Installation Instructions |
|
- | |||||
| 2 | W11026442 | Console (white) (Replaces: W10622102) |
|
Immediately | $ 553.60 | ||||
| 2 | W10849051 | Console Assembly (complete) (white) (Replaces: W10642094) |
|
$ 499.97 | |||||
| 3 | W10706042 | Wiring Harness, Main |
|
$ 301.19 | |||||
| 3 | W10706042 | Wiring Harness, Main (Replaces: W10666374) |
|
$ 301.19 | |||||
| 4 | W10123956 | Panel, Dampening |
|
- | |||||
| 5 | W10593673 | Harness, User Interface |
|
$ 34.71 | |||||
| 6 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 7.92 | ||||
| 7 | 98009179 | Nut, "u (Replaces: W10787282) |
|
$ 12.63 | |||||
| 7 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 7.32 | |||||
| 8 | W11721376 | Seal, Console (Replaces: W10726632) |
|
- | |||||
| 8 | W11721376 | Seal, Console (Replaces: W10633169) |
|
- | |||||
| 9 | W10622402 | Panel, Rear Console |
|
- | |||||
| 10 | W11661566 | Screw (Replaces: W10288126) |
|
$ 13.26 | |||||
| 11 | W10802463 | Control, Electronic (Replaces: W10771991) |
|
$ 364.66 | |||||
| 11 | W10625546 | Control, Electronic |
|
- | |||||
| 12 | W11227373 | Top (white) (Replaces: W10508981) |
|
$ 230.05 | |||||
| 13 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 13 | WP9740849 | Screw (Replaces: 9740849) |
|
$ 6.57 | |||||
| 14 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 15 | WPW10316167 | Cover, Terminal Block (Replaces: W10316167) |
|
$ 93.64 | |||||
| 16 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 16 | W11824838 | Screw (Replaces: W10713770) |
|
- | |||||
| 17 | W10853910 | Assembly, Control Knob (chrome) (Replaces: W10727011) |
|
$ 48.55 | |||||
| 17 | W10853910 | Assembly, Control Knob (silver) (Replaces: W10519048) |
|
$ 48.55 | |||||
| 18 | W10849051 | Assembly, Fascia (Replaces: W10618906) |
|
$ 499.97 | |||||
| 1A | W10680141 | Use And Care Guide |
|
- | |||||
| 1B | W10680150 | Tech Sheet |
|
- | |||||
| 1C | W10701469 | Energy Guide |
|
- |
