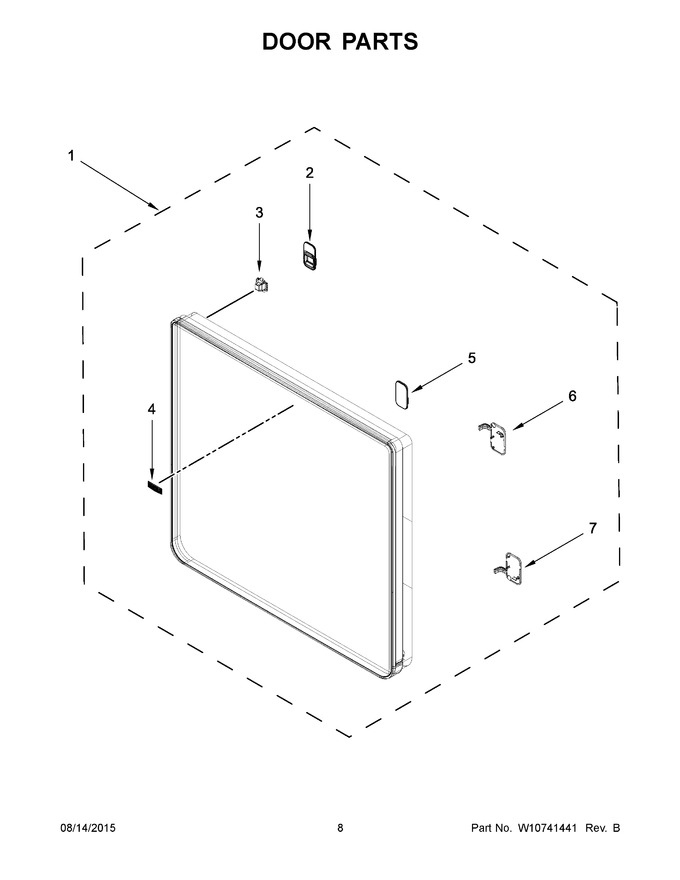

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10793113		Assembly, Door (white)		Appelez-nous	-
1	W11129460		Outer Door Assembly (white)   (Replaces: W10631405)				$ 459.98
2	W11103932		Bezel, Door Catch (white)   (Replaces: W10631401)				$ 28.29
3	W11429587		Assembly, Door Catch   (Replaces: W10610880)			Immediately	$ 26.55
3	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 7.55
4	W10916628		Assembly, Inner Door (white)   (Replaces: W10614983)				$ 581.18
4	WPW10612925		Badge (maytag)   (Replaces: W10612925)			Immediately	$ 42.36
5	W10621182		Retainer, Window		Appelez-nous	-
5	W10631410		Catch, Door Cover (white)		Appelez-nous	-
6	W10623818		Hinge Assembly-blade, Door (right) (white)		Appelez-nous	-
6	W10631395		Hinge Cover, Top (white)		Appelez-nous	-
7	W10631396		Hinge Cover, Bottom (white)		Appelez-nous	-
7	W10623819		Hinge Assembly-blade, Door (left) (white)				$ 282.28
8	W10608740		Window, Door		Appelez-nous	-
9	W10631394		Door, Inner (white)		Appelez-nous	-
10	W11429587		Assembly, Door Catch   (Replaces: W10696503)			Immediately	$ 26.55
11	W10763835		Seal, Door   (Replaces: W10614993)			Immediately	$ 129.79
12	WPW10612925		(maytag) (badge)   (Replaces: W10612925)			Immediately	$ 42.36
13	W10631407		Trim, Hinge Side		Appelez-nous	-
14	W10631408		Trim, Side		Appelez-nous	-
15	W10631409		Trim, Bottom		Appelez-nous	-
16	W10608739		Trim, Top				$ 312.84
17	W10608741		Seal, Window		Appelez-nous	-
18	W10631410		Catch, Door Cover (white)		Appelez-nous	-
19	WP488627		Screw   (Replaces: 342055)				$ 8.11
20	W10631395		Hinge Cover, Top (white)		Appelez-nous	-
21	W10631396		Hinge Cover, Bottom (white)		Appelez-nous	-
22	8572266		Bumper, Door			Immediately	$ 11.73
