SELECT A DIAGRAM

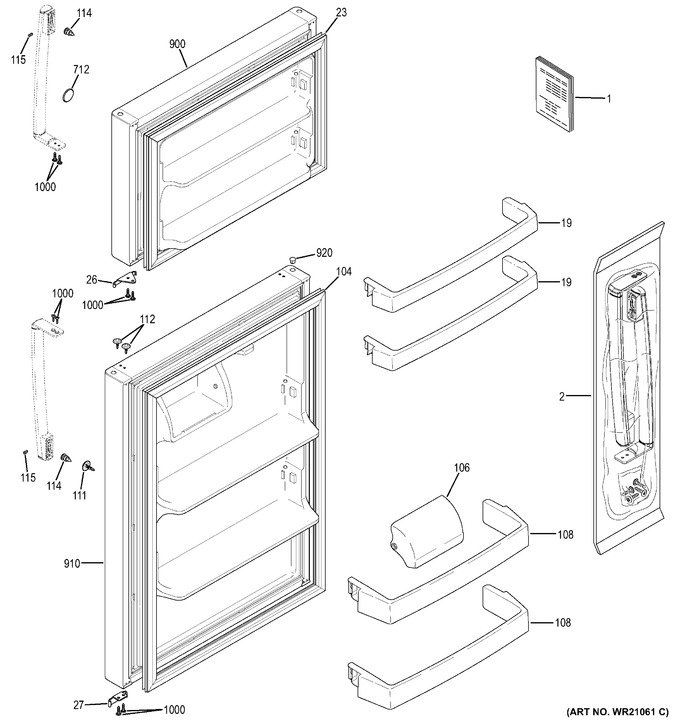

1 - Doors


2 - Freezer Section


3 - Fresh Food Section


4 - Fresh Food Shelves


5 - Machine Compartment


6 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51900		Pm Mini Manual Wiring		Appelez-nous	-
2	WR12X21383		Pk Handle Ss Asm		Appelez-nous	-
19	WR71X21149		Shelf Fixed Fz		Appelez-nous	-
23	WR14X21235		Gasket Door Fz		Appelez-nous	-
26	WR02X21233		Stop Door		Appelez-nous	-
27	WR02X21232		Stop Door		Appelez-nous	-
104	WR14X21234		Gasket Door Ff		Appelez-nous	-
106	WR22X21153		Door Dairy		Appelez-nous	-
108	WR17X21154		Shelf Fixed Ff		Appelez-nous	-
111	WR02X21242		Plug Door Rvsbl				$ 1.15
112	WR02X21241		Plug Door Rvsbl		Appelez-nous	-
114	WR01X21240		Fastener Door Handle		Appelez-nous	-
115	WG03A01608		Set Screw   (Replaces: WR01X11014)			Immediately	$ 6.35
712	WR02X21156		Badge Asm Ge		Appelez-nous	-
900	WR78X21231		Door Foam Asm Fz		Appelez-nous	-
910	WR78X21230		Door Foam Asm Ff		Appelez-nous	-
920	WR02X21663		Plug Button Thimble		Appelez-nous	-
1000	WR01X21151		Scr 10-16 Ab Trp 3/4 Nbs		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
