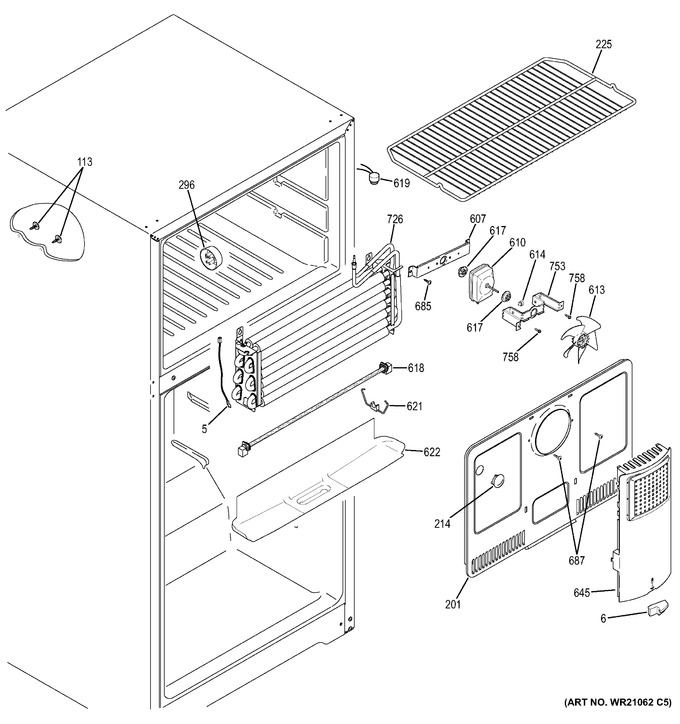

2 - Freezer Section


3 - Fresh Food Section


4 - Fresh Food Shelves


5 - Machine Compartment


6 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	WR55X21096		Harness Jumper Fuse		Appelez-nous	-
6	WR02X21703		Actuator Air Foam		Appelez-nous	-
201	WR17X21170		Cover Evap Asm		Appelez-nous	-
225	WR71X21169		Shelf Wire Fz		Appelez-nous	-
607	WG03A02567		Bracket Evap Fan Rear   (Replaces: WR21X10152)				$ 19.06
610	WR60X10346		Motor Ac/dc Evap Fan		Appelez-nous	-
613	WG03F10250		Blade Evap Fan Asm   (Replaces: WR60X10204)			Immediately	$ 11.12
614	WR01A00163		Bumper   (Replaces: WR02X10540)			Immediately	$ 6.35
617	WG03F00306		Grommet Evap Fan   (Replaces: WR02X12008)			Immediately	$ 6.99
618	WR09X21107		Heater Def Asm		Appelez-nous	-
619	WR50X22304		Thermostat Def		Appelez-nous	-
621	WR02X13678		Holder Element Asm		Appelez-nous	-
622	WR17X21167		Trough Drain		Appelez-nous	-
645	WR17X21171		Tower Air		Appelez-nous	-
685	WR1X1804		Scr 8-18 Ab Hxw 3/4 Wh		Appelez-nous	-
687	WR01X10589		Scr 8-15 Ab Ihxw 1/2 S		Appelez-nous	-
726	WR87X21168		Evap And Tube Asm		Appelez-nous	-
753	WR02X10516		Bracket Evap Fan Frt		Appelez-nous	-
758	WG03A01146		Scr 8-32 Tt Hxw 3/8 S   (Replaces: WR01X10860)				$ 4.20
