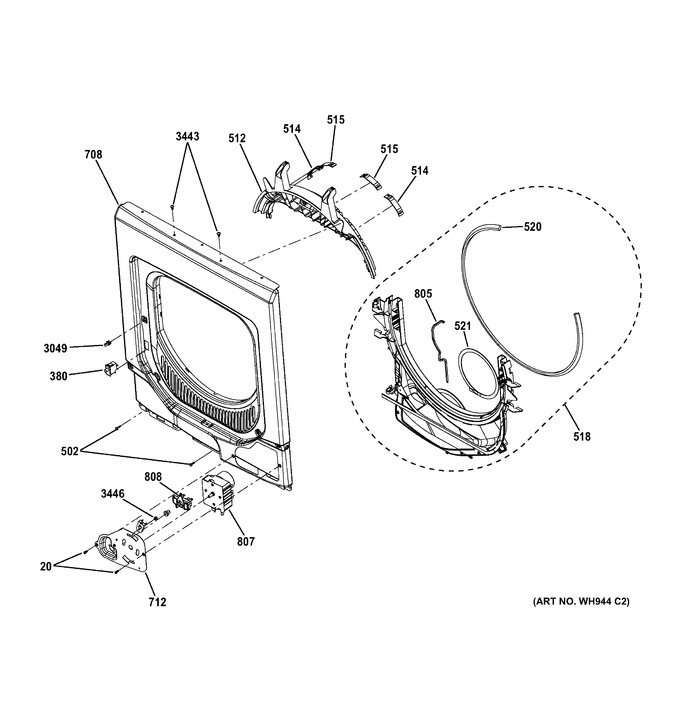

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 20 | WE2M302 | Screw |
|
- | |||||
| 380 | WE4M415 | Door Switch |
|
- | |||||
| 502 | WW02A00031 | Screw # 10 (Replaces: WE2M174) |
|
Immediately | $ 3.97 | ||||
| 512 | WE3M50 | Bearing Top |
|
- | |||||
| 514 | WW03A00015 | Bearing Slide (Replaces: WE3M51) |
|
Immediately | $ 6.57 | ||||
| 515 | WW02A00250 | Bearing Slide (Replaces: WE3M52) |
|
Immediately | $ 12.11 | ||||
| 518 | WE14M190 | Trap Duct Asm 24" |
|
- | |||||
| 520 | WE1M997 | Felt Trap Duct |
|
- | |||||
| 521 | WE1M998 | Gasket Exhaust |
|
- | |||||
| 708 | WE20M467 | Panel Front |
|
- | |||||
| 712 | WE19M1696 | Support Controls |
|
- | |||||
| 805 | WE26M360 | Harness Door Asm |
|
- | |||||
| 807 | WW02F01034 | Timer (Replaces: WE4M521) |
|
Immediately | $ 70.60 | ||||
| 808 | WW02L00024 | Switch Pts (Replaces: WE4M416) |
|
Immediately | $ 15.83 | ||||
| 3049 | WW02A00004 | Strike Door (Replaces: WE1X1192) |
|
Immediately | $ 3.97 | ||||
| 3443 | WW01A00521 | Screw (Replaces: WE1M280) |
|
$ 3.97 | |||||
| 3446 | WE2M223 | Screw |
|
- |
