SELECT A DIAGRAM

10 - Cabinet (3)


11 - Cabinet (4)


12 - Cabinet (5)


1 - Controls


2 - Cabinet (6)


3 - Tub, Basket & Agitator


4 - Motor & Drive Assembly


5 - Front Panel


6 - Blower & Motor


7 - Dryer Door Assembly


8 - Cabinet (1)


9 - Cabinet (2)

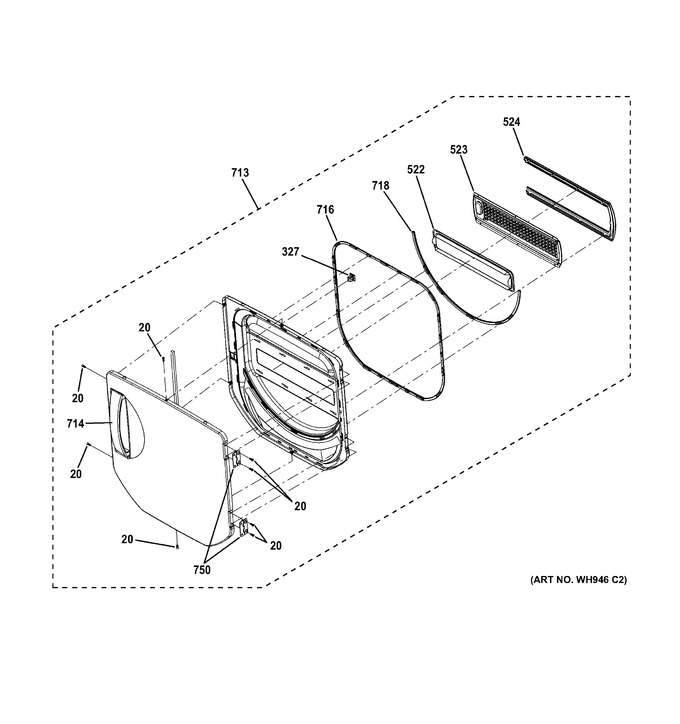

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
20	WE2M302		Screw		Appelez-nous	-
327	WE1M536		Latch		Appelez-nous	-
522	WE18X20437		Lint Trap Assembly		Appelez-nous	-
523	WE01X20427		Grid		Appelez-nous	-
524	WW02L00754		Slide   (Replaces: WE1M1001)			Immediately	$ 49.25
713	WE10M150		Door Asm		Appelez-nous	-
714	WW03L00411		Handle Door   (Replaces: WE1M1068)			Immediately	$ 19.45
716	WE9M58		Gasket Door		Appelez-nous	-
718	WE9M59		Gasket Door Lower		Appelez-nous	-
750	WW02L00028		Hinge   (Replaces: WE1M1033)			Immediately	$ 9.92
	WW02F00193		Board Control Asm				$ 395.50
	WW02F00222		Sensor De Velocidad			Immediately	$ 55.08
	WW02L00024		Switch, Pts, Momentary			Immediately	$ 15.83
	WW03F00016		Lid Lock			Immediately	$ 76.12
	WW03A00179		Motor   (Replaces: WW03F00054)			Immediately	$ 178.42

    View Diagram in Separate Window       Print Part List
