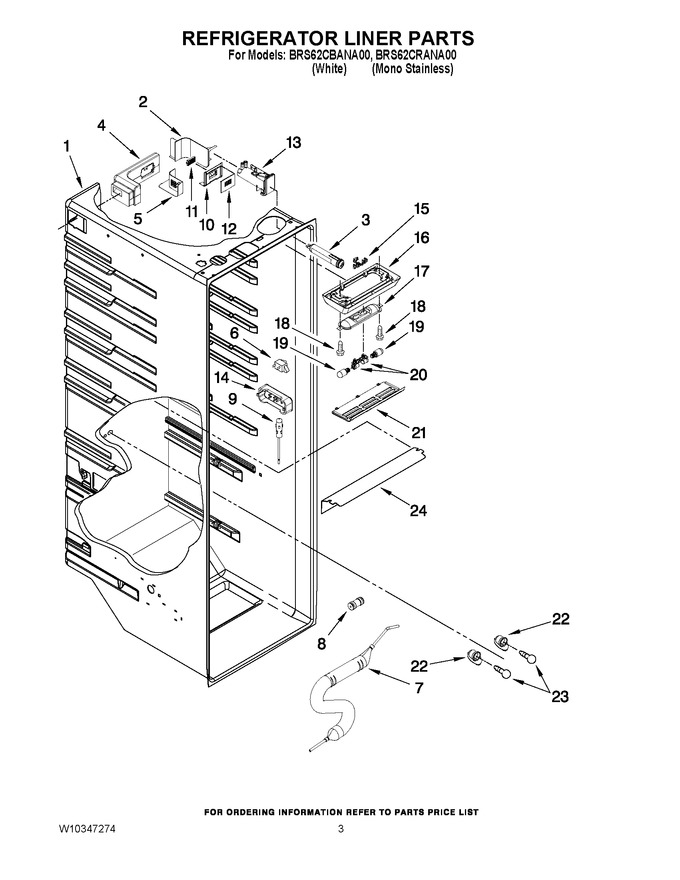

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WPW10260405 | Cover, Water Filter (Replaces: W10260403) |
|
$ 118.77 | |||||
| 3 | EDR1RXD1B | Water Filter (Replaces: W10295370) |
|
Immediately | $ 49.99 | ||||
| 4 | W10814173 | Air Diffuser Assembly (Replaces: W10251495) |
|
Immediately | $ 360.54 | ||||
| 5 | W10260407 | Air Diffuser Cover |
|
$ 42.69 | |||||
| 6 | W11384469 | Switch Rocker Arm (Replaces: C3680314) |
|
Immediately | $ 39.09 | ||||
| 7 | W11802492 | Reservoir (Replaces: W10238085) |
|
$ 88.91 | |||||
| 8 | WP2300868 | Connector (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| 9 | W11724692 | Thermistor (Replaces: W10280385) |
|
Immediately | $ 33.60 | ||||
| 10 | W10260413 | Air Filter Housing |
|
- | |||||
| 11 | W10349302 | Air Filter |
|
- | |||||
| 12 | W10309405 | Air Filter Cover (Replaces: W10330014) |
|
- | |||||
| 13 | WPW10329943 | Housing, Water Filter (Replaces: W10329943) |
|
$ 78.49 | |||||
| 14 | WPW10425252 | Cover, Thermistor (Replaces: W10251510) |
|
Immediately | $ 88.38 | ||||
| 15 | W10253300 | Wire Assy, Top Light |
|
- | |||||
| 16 | W10280178 | Trim, Light |
|
- | |||||
| 17 | 2223680 | Shield, Heat |
|
$ 93.52 | |||||
| 18 | WP3400906 | Screw (Replaces: W10141632) |
|
$ 9.05 | |||||
| 19 | WPA3073101 | Light Bulb (Replaces: 2326255) |
|
Immediately | $ 12.72 | ||||
| 20 | WPW10191429 | Socket, Light (Replaces: 2223857) |
|
$ 8.80 | |||||
| 21 | W10280420 | Lens, Top Light |
|
$ 107.14 | |||||
| 22 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 23 | W11679940 | Light Bulb (Replaces: W10311505) |
|
Immediately | $ 11.30 | ||||
| 24 | WPW10269099 | Lens, Light (Replaces: W10295024) |
|
$ 128.01 |
