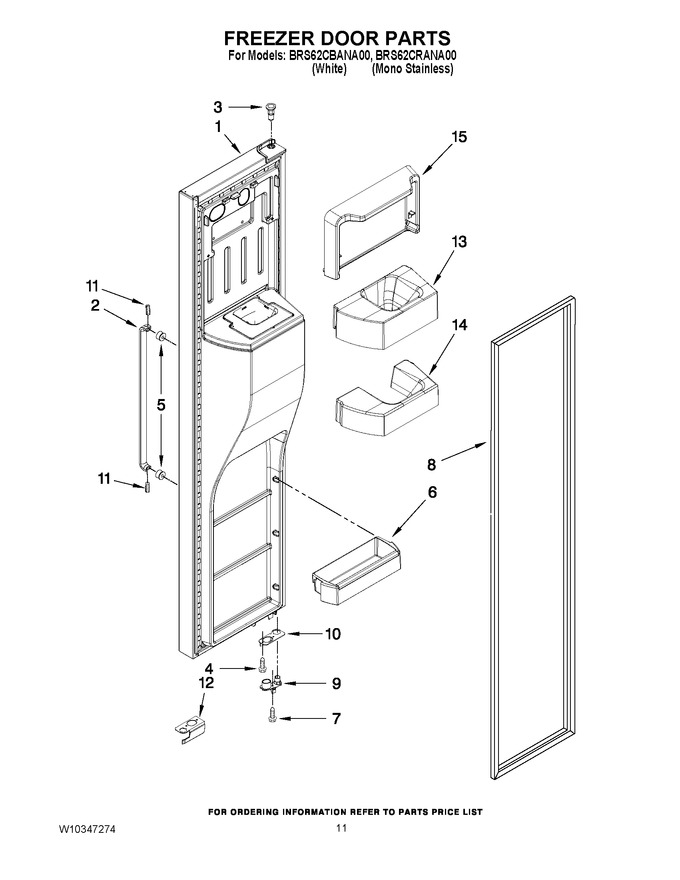

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10341535		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)   (Replaces: W10341535)		Appelez-nous	-
1	LW10290939		Freezer Door (includes Item 8 And Dispenser Front Parts) (mono Stainless)   (Replaces: W10290939)		Appelez-nous	-
2	W10851029		Handle   (Replaces: W10277354)		Appelez-nous	-
3	WP2182181		Thimble-top   (Replaces: 2200087)				$ 8.15
4	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
5	WPW10170540		Stud, Handle   (Replaces: W10170540)			Immediately	$ 8.51
6	W10309878		Door Bin				$ 86.59
7	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
8	WPW10247885		Door Gasket, Magnetic (mist Beige)   (Replaces: W10247885)				$ 347.07
8	WPW10355585		Door Gasket, Magnetic (apollo Grey)   (Replaces: W10249917)				$ 337.27
9	WPW10257206		Door Closer, Upper Cam (apollo Grey)   (Replaces: W10257206)			Immediately	$ 13.18
9	WPW10248015		Door Closer, Upper Cam (white)   (Replaces: W10248015)				$ 12.85
10	W11293380		Bracket, Door Stop (chrome)   (Replaces: W10247907)				$ 69.21
11	W11366418		Set Screw   (Replaces: W10223573)			Immediately	$ 15.79
12	WPW10632062		Cover, Door Stop (midnight Grey)   (Replaces: W10257223)				$ 7.55
12	W10632059		Cover, Door Stop (white)   (Replaces: W10257220)				$ 23.46
13	W10284556		Chute Adapter		Appelez-nous	-
14	W10283476		Filler, Chute		Appelez-nous	-
15	W10314925		Half Bin Housing		Appelez-nous	-
