Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 49-60646 Pm Guide Owners Appelez-nous -
1 31-51661 Mini Wiring Manual Appelez-nous -
2 WR02X12257 Scr 4-10 Pl Pnp 3/4 Ss Appelez-nous -
7 WR12X20441 Arc Handle Asm Appelez-nous -
9 WR01A01801 Fastener Door Handle   (Replaces: WR01X11007) In-Stock Immediately $ 12.71

12 WR01A01018 Stop Door Black   (Replaces: WR02X10782) Special Order $ 39.70

14 WR24X10171 Gasket Door Fz Appelez-nous -
15 WR02X10780 Cam Closure Ff Black Appelez-nous -
31 WR17X12898 Grill Recess Appelez-nous -
36 WR01F01784 Solenoid Asm   (Replaces: WR62X10055) Special Order $ 88.99

45 WR2X8818 Retainer Recess Door Appelez-nous -
55 WR01F00145 Board Asm Disp Lighting   (Replaces: WR55X10899) Special Order $ 15.88

58 WR17X12900 Housing Shield Disp Appelez-nous -
62 WR01L01914 Door Recess Asm   (Replaces: WR17X11653) Special Order $ 65.21

63 WR02X12059 Spring Recess Door Appelez-nous -
67 WR01L00934 Crank Door Recess   (Replaces: WR17X11953) Special Order $ 17.01

69 WR01F00833 Funnel Ice Disp   (Replaces: WR17X12120) Special Order $ 54.09

70 WR17X20449 Paddle Asm Appelez-nous -
72 WR01F03637 Switch   (Replaces: WR23X10224) In-Stock Immediately $ 17.47

74 WR01A00922 Spring Torsion   (Replaces: WR02X12256) Special Order $ 23.82

80 WR01F02845 Union Connector   (Replaces: WR02X11330) In-Stock Immediately $ 19.06

93 WR55X20464 Interface Dispenser Asm Appelez-nous -
122 WR71X10649 Module Shelf Fz Fixed Appelez-nous -
123 WR71X10650 Module Shelf Fz Appelez-nous -
854 WR23X10695 Harness Recess Disp Appelez-nous -
900 WR78X22203 Door Foam Asm Fz Appelez-nous -
903 WR01X10234 Thimble Door Btm Fz Blac Appelez-nous -
904 WR01X10582 Scr 10-16 Appelez-nous -
911 WR01X10956 Thimble Door Appelez-nous -
915 WG03A01608 Set Screw   (Replaces: WR01X11014) In-Stock Immediately $ 6.35


    View Diagram in Separate Window     Print Icon   Print Part List

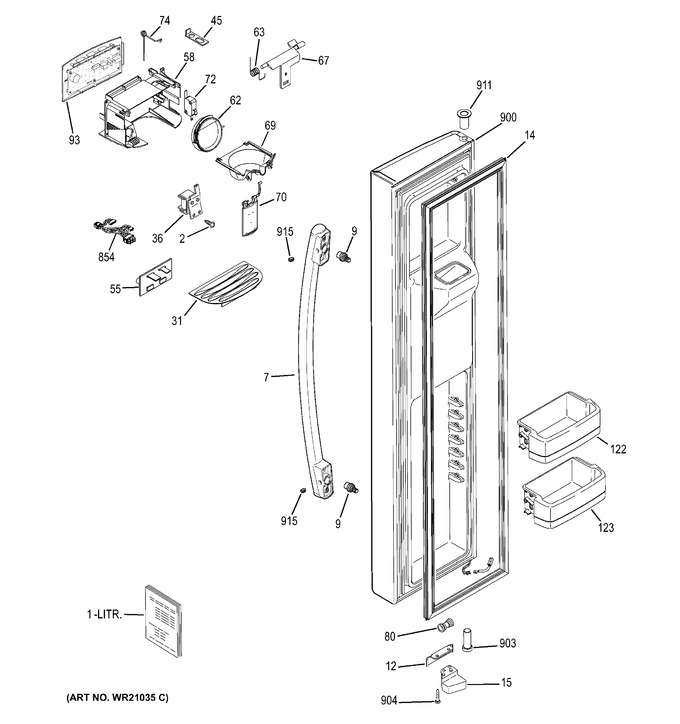

Diagram for GSS23HSHBCSS
