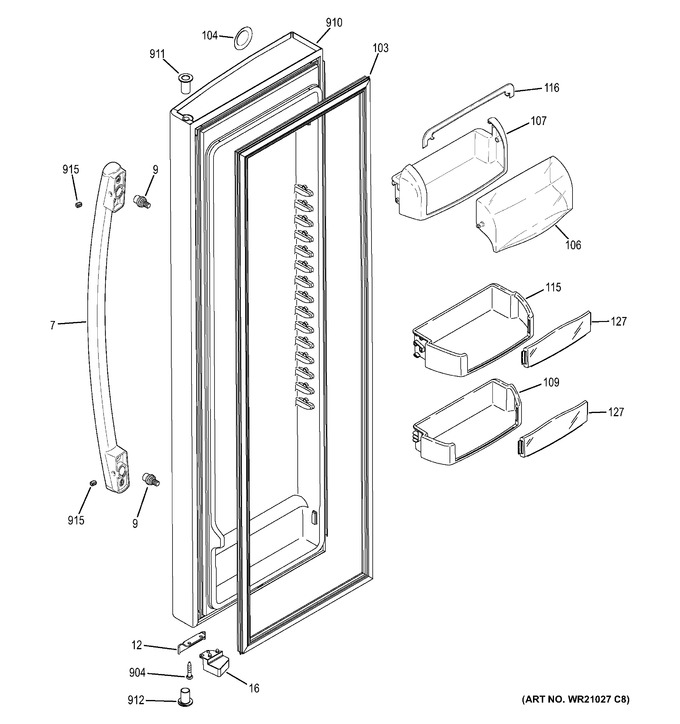

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	WR12X20441		Arc Handle Asm		Appelez-nous	-
9	WR01A01801		Fastener Door Handle   (Replaces: WR01X11007)			Immediately	$ 12.71
12	WR01A01018		Stop Door Black   (Replaces: WR02X10782)				$ 39.70
16	WR01F01557		Cam Closure Fz Black   (Replaces: WR02X10779)				$ 36.53
103	WR24X10157		Gasket Door Ff Bk**		Appelez-nous	-
104	WR01A01450		Badge Ge   (Replaces: WR04X10223)				$ 14.29
106	WR01L01269		Door Dairy Clear   (Replaces: WR22X10042)				$ 61.06
107	WR22X10041		Compartment Dairy		Appelez-nous	-
109	WR01L02880		Module Shelf Ff   (Replaces: WR71X10979)				$ 38.81
115	WR01L00078		Module Shelf Ff   (Replaces: WR71X10973)			Immediately	$ 63.43
116	WR22X10043		Trim Dairy Compartment		Appelez-nous	-
127	WR01L04630		Insert Module   (Replaces: WR71X10761)			Immediately	$ 68.21
904	WR01X10582		Scr 10-16		Appelez-nous	-
910	WR78X22868		Door Foam Asm Ff		Appelez-nous	-
911	WR01X10956		Thimble Door		Appelez-nous	-
912	WR01X10953		Thimble Door		Appelez-nous	-
915	WG03A01608		Set Screw   (Replaces: WR01X11014)			Immediately	$ 6.35
