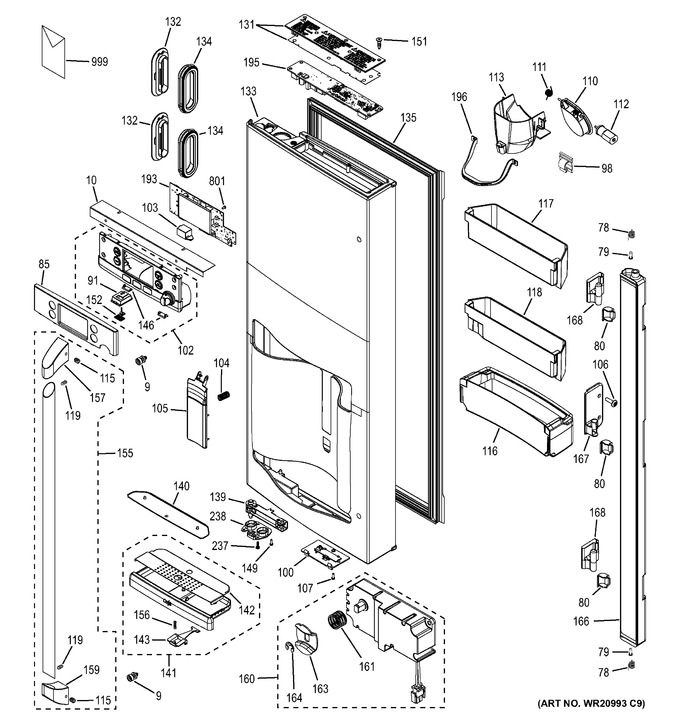

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 9 | WR01A00255 | Fastener Handle Ss (Replaces: WR02X12028) |
|
Immediately | $ 15.88 | ||||
| 10 | WR14X10382 | Gasket Cafe Display |
|
- | |||||
| 78 | WG03L05095 | Spring Hinge Mullion (Replaces: WR01X11052) |
|
Immediately | $ 10.86 | ||||
| 79 | WR01X11053 | Sleeve Spring Mullion |
|
- | |||||
| 80 | WR02X13739 | Hinge Cap |
|
- | |||||
| 85 | WG03L05428 | Display Cover (Replaces: WR17X13172) |
|
Immediately | $ 147.83 | ||||
| 91 | WR02X13751 | Housing Cover Usb |
|
- | |||||
| 98 | WR01X11064 | Clip Phgl |
|
- | |||||
| 100 | WR55X23636 | Cover Led Fz Asm |
|
- | |||||
| 102 | WG03F06577 | Display Asm (Replaces: WR17X13171) |
|
$ 207.71 | |||||
| 103 | WG03A00265 | Speaker (Replaces: WR55X11139) |
|
$ 49.33 | |||||
| 104 | WR01X11027 | Spring |
|
- | |||||
| 105 | WR17X13165 | Paddle Front Switch Asm |
|
- | |||||
| 106 | WR01X11054 | Scr 8-18 Flp 1/2 S |
|
- | |||||
| 107 | WW01A00097 | Screw (Replaces: WH2X1217) |
|
$ 3.97 | |||||
| 110 | WR17X13229 | Body Duct Door |
|
- | |||||
| 111 | WR01X11017 | Spring Duct Door |
|
- | |||||
| 112 | WR60X10344 | Motor Duct Door |
|
- | |||||
| 113 | WR17X13173 | Funnel Ice |
|
- | |||||
| 115 | WR01X11057 | Set Screw .250 Dia. |
|
- | |||||
| 116 | WR71X11058 | Bin Btm Ice Lh Asm |
|
- | |||||
| 117 | WR71X11045 | Bin Ice Door Top Lh |
|
- | |||||
| 118 | WR71X11046 | Bin Ice Door Mid Lh |
|
- | |||||
| 119 | WR02X11850 | Set Screw |
|
- | |||||
| 131 | WR02X13741 | Pcb Cover Asm Dgy |
|
- | |||||
| 132 | WR14X10367 | Collar Gasket |
|
- | |||||
| 133 | WR78X23039 | Door Foam Asm Flat Ff Lh |
|
- | |||||
| 134 | WR14X10364 | Port Gasket |
|
- | |||||
| 135 | WG03L09792 | Gasket Ff Dgy (Replaces: WR14X10377) |
|
$ 145.45 | |||||
| 139 | WR11X23034 | Closure Door Asm Lh |
|
- | |||||
| 140 | WR17X13174 | Tray Guard Asm |
|
- | |||||
| 141 | WR17X13168 | Tray Recess Asm |
|
- | |||||
| 142 | WR17X13169 | Grill Recess |
|
- | |||||
| 143 | WR02X13747 | Lever Tray Lock |
|
- | |||||
| 146 | WR02X13655 | Shield Led Light |
|
$ 19.05 | |||||
| 149 | WG03A00428 | Screw 8-18 Hi/lo 5/8 (Replaces: WR01X10196) |
|
$ 4.20 | |||||
| 151 | WR01X11028 | Scr 8-18 Flp 1/2 S |
|
- | |||||
| 152 | WR13X10980 | Cover Usb |
|
- | |||||
| 155 | WG03L05277 | Handle Asm Ff (Replaces: WR12X11047) |
|
$ 136.22 | |||||
| 156 | WR01X11035 | Spring Tray Latch |
|
- | |||||
| 157 | WR12X11050 | Handle Cap End |
|
- | |||||
| 159 | WR12X11051 | Handle Cap End |
|
- | |||||
| 160 | WR60X10345 | Auger Motor Asm |
|
- | |||||
| 161 | WR02X13645 | Spring Clutch Am |
|
- | |||||
| 163 | WR02X13647 | Clutch Coupling Am |
|
- | |||||
| 164 | WR02X13648 | E Clip |
|
- | |||||
| 166 | WR17X13240 | Mullion Articulating Asm |
|
- | |||||
| 167 | WR13X10984 | Hinge Center Mullion |
|
- | |||||
| 168 | WR13X10985 | Hinge Mullion |
|
- | |||||
| 193 | WR55X23906 | Board Asm Graphic Lcd |
|
- | |||||
| 195 | WR55X23047 | Pcb Asm Door Control |
|
- | |||||
| 196 | WR02X25149 | Funnel Clip |
|
- | |||||
| 237 | WR01X11032 | Scr 10-24 Ab Rnt 20 5/8 |
|
- | |||||
| 801 | WD02X10129 | 6-19 X 1/4 Torx Pan Head |
|
- | |||||
| 999 | 31-51901 | Pm Mini Manual Service |
|
- | |||||
| 999 | 31-49043 | Pm Quick Install Guide |
|
- | |||||
| 999 | 49-60711 | Pm Quick Use & Care Cafe |
|
- |
