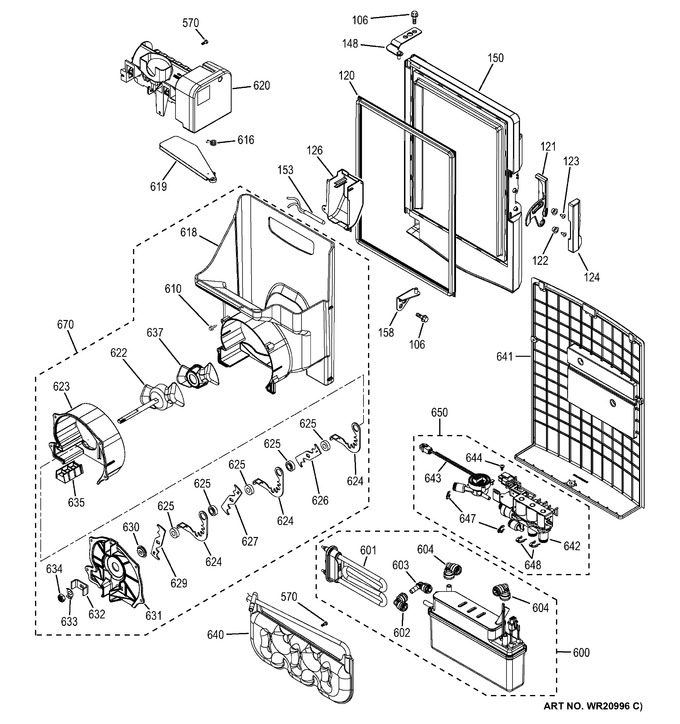

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 106 | WR01X11054 | Scr 8-18 Flp 1/2 S |
|
- | |||||
| 120 | WR24X10288 | Gasket Icebox Door |
|
- | |||||
| 121 | WR11X10031 | Latch Icebox Door |
|
- | |||||
| 122 | WR01X11015 | Latch Bushing |
|
- | |||||
| 123 | WD02X10166 | Scr 8-18 Ab Hw 1/2 Ss |
|
- | |||||
| 124 | WR02X13636 | Cover Latch |
|
- | |||||
| 126 | WR17X13067 | Cover Am Im Harness |
|
- | |||||
| 148 | WR13X10972 | Hinge Top Door Icebox |
|
- | |||||
| 150 | WR78X12862 | Ice Box Door Asm |
|
- | |||||
| 153 | WR55X11142 | Sensor Temperature |
|
- | |||||
| 158 | WR13X10973 | Hinge Bottom Door Icebox |
|
- | |||||
| 570 | WR1X1757 | Scr 8-18 Hxw 1 1/4s |
|
- | |||||
| 600 | WG03F05985 | Tank Hot Water Asm (Replaces: WR17X13176) |
|
Immediately | $ 361.32 | ||||
| 601 | WR51X10140 | Heater Asm |
|
- | |||||
| 602 | WR02X13753 | Connector 90 Deg 5/16 Ht |
|
- | |||||
| 603 | WR02X13754 | Connector 5/16 Stem Ht |
|
- | |||||
| 604 | WR02X13755 | Connector 90 3/8-5/16 Ht |
|
- | |||||
| 610 | WR01X11043 | Boss Scr 10-14.5 1/2 Ice |
|
- | |||||
| 616 | WR29X10112 | Spring Feeler Arm |
|
- | |||||
| 618 | WR29X20013 | Bucket Ice |
|
- | |||||
| 619 | WR29X10110 | Arm Feeler Im |
|
- | |||||
| 620 | WG03F07552 | Ice Maker Asm-for Door (Replaces: WR30X10160) |
|
Immediately | $ 184.41 | ||||
| 622 | WR02X13642 | Agitator Asm |
|
- | |||||
| 623 | WR17X13066 | Housing Ice Crusher |
|
- | |||||
| 624 | WR02X13644 | Blade Stationary |
|
- | |||||
| 625 | WR02X13654 | Spacer Crusher |
|
- | |||||
| 626 | WR02X13650 | Moving Blade Crusher |
|
- | |||||
| 627 | WR02X13651 | Moving Blade Crusher |
|
- | |||||
| 629 | WR02X13652 | Moving Blade Crusher |
|
- | |||||
| 630 | WR02X13653 | Spacer Crusher End |
|
- | |||||
| 631 | WR29X20012 | Cover Crusher |
|
- | |||||
| 632 | WR02X13643 | Coupling Bucket |
|
- | |||||
| 633 | WR01X11018 | Washer Lock |
|
- | |||||
| 634 | WR01X11025 | Nylon Ins Locknut 3/8-24 |
|
- | |||||
| 635 | WR02X13649 | Holder Stationary Blade |
|
- | |||||
| 637 | WR02X13681 | Insert Auger Agitator |
|
- | |||||
| 640 | WR17X13248 | Tank Cold Water Asm |
|
- | |||||
| 641 | WR13X10989 | Cover Valve And Tank Asm |
|
- | |||||
| 642 | WR57X10101 | Valve Tri Water |
|
- | |||||
| 643 | WR57X10099 | Flow Meter |
|
- | |||||
| 644 | WR01X11019 | Scr M4x1.59 Mch P 10mm S |
|
- | |||||
| 647 | WR01X11041 | Quick Clip Connector 1/4 |
|
- | |||||
| 648 | WR01X11040 | Quick Clip Conn 5/16 |
|
- | |||||
| 650 | WG03F04073 | Valve Tri Water W Fm Asm (Replaces: WR57X10102) |
|
$ 219.11 | |||||
| 670 | WR30X10174 | Ice Bucket & Crusher |
|
- |
