SELECT A DIAGRAM

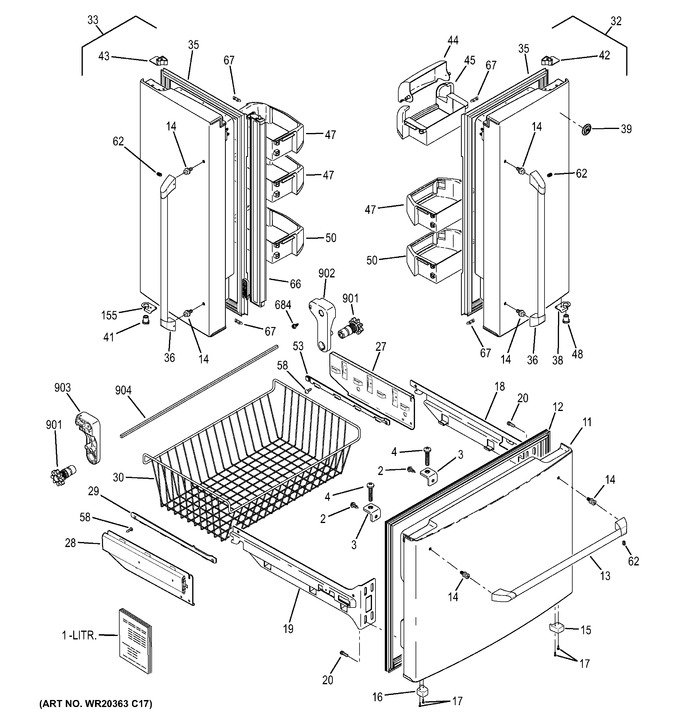

1 - Doors


2 - Freezer Section


3 - Freezer Shelves


4 - Fresh Food Section


5 - Fresh Food Shelves


6 - Case Parts


7 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-60603		Guide Owner		Appelez-nous	-
1	31-51781		Pm Mini Wiring Manual		Appelez-nous	-
2	WR01X10844		Scr 8-32 Ab Ihws 3/8 S		Appelez-nous	-
3	WR02X12870		Bracket Support		Appelez-nous	-
4	WR01X10843		Scr 1/4 - 20 Unc -2a		Appelez-nous	-
11	WR78X20721		Door Foam Fz Asm		Appelez-nous	-
12	WR14X10349		Gasket		Appelez-nous	-
13	WR12X20762		Handle Asm Commercial		Appelez-nous	-
14	WR01A00255		Fastener Handle Ss   (Replaces: WR02X12028)			Immediately	$ 15.88
15	WR02X12361		Cam Closure Fz Rh		Appelez-nous	-
16	WR02X12362		Cam Closure Fz Lh		Appelez-nous	-
17	WR01X10582		Scr 10-16		Appelez-nous	-
18	WR72X10299		Bracket Lower		Appelez-nous	-
19	WR72X10300		Bracket Lower		Appelez-nous	-
20	WR01A00633		Scr 1/4-20 Rt Flat 3/4 S   (Replaces: WR01X10885)				$ 3.97
27	WR01A01809		Slide Holder Asm   (Replaces: WR72X10297)			Immediately	$ 207.71
28	WR01A01809		Slide Holder Asm   (Replaces: WR72X10298)			Immediately	$ 207.71
29	WR02X12898		Holder Basket		Appelez-nous	-
30	WR01L00154		Basket Lower   (Replaces: WR21X10179)				$ 1,323.31
32	WR78X20722		Door Foam Ff French Asm		Appelez-nous	-
33	WR78X20723		Door Foam Ff French Asm		Appelez-nous	-
35	WR01L08729		Gasket French   (Replaces: WR14X10279)			Immediately	$ 33.35
36	WR01L06189		Handle Asm Commercial   (Replaces: WR12X11044)				$ 92.10
38	WR02X12899		Stop Door		Appelez-nous	-
39	WR04X20074		Badge Ge		Appelez-nous	-
41	WR02X12903		Thimble Door Plastic		Appelez-nous	-
42	WR02X12793		Cam Ff Closure Rh		Appelez-nous	-
43	WR02X13520		Cam Ff Closure Lh		Appelez-nous	-
44	WR02X12883		Door Dairy		Appelez-nous	-
45	WR01L00668		Compartment Dairy   (Replaces: WR71X10931)				$ 57.57
47	WR01L04307		Shelf Module Asm   (Replaces: WR71X11049)			Immediately	$ 93.58
48	WR01A00988		Thimble Door Ff   (Replaces: WR02X12363)				$ 15.54
50	WR32X10833		Shelf Module Asm		Appelez-nous	-
53	WR01L02537		Holder Basket   (Replaces: WR02X12897)				$ 15.88
58	WR01A00683		Scr 8-18 Ab Ihxw 9/16 S   (Replaces: WR01X10588)				$ 3.97
62	WR02X11850		Set Screw		Appelez-nous	-
66	WR01A01791		Mullion Articulation Asm   (Replaces: WR17X20619)			Immediately	$ 191.40
67	WR02X12469		Bumper French Door		Appelez-nous	-
155	WR02X12900		Stop Door		Appelez-nous	-
684	WR01X10252		Screw 10-32 Tt Hxw 5/16		Appelez-nous	-
901	WR01L04645		Wheel Sprocket   (Replaces: WR02X12904)				$ 9.92
902	WR01A00011		Arm Wheel Sprocket   (Replaces: WR02X12905)				$ 17.47
903	WR01A00012		Arm Wheel Sprocket   (Replaces: WR02X12906)				$ 10.22
904	WR02X12907		Axle Wheel Sprocket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
