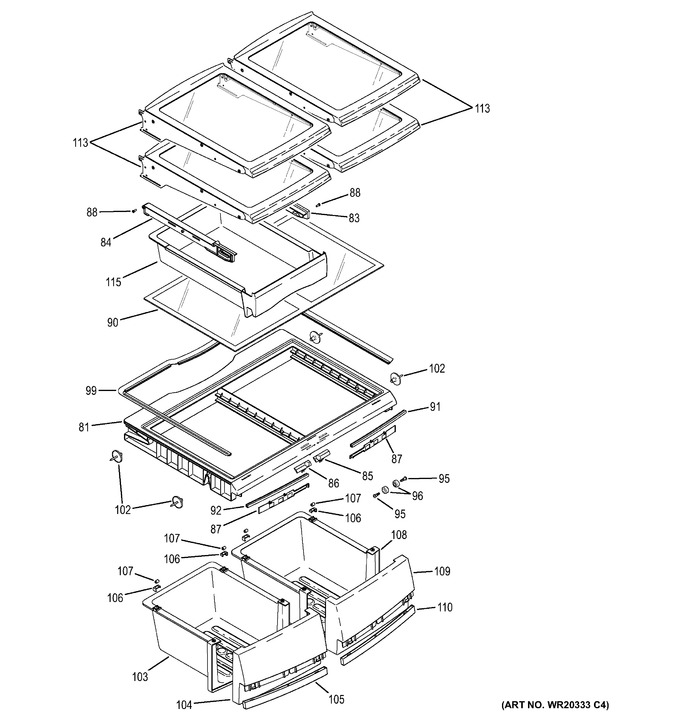

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
81	WR72X20505		Frame Cover Veg Pan		Appelez-nous	-
83	WR01A00212		Slide Pan Rh   (Replaces: WR72X10072)			Immediately	$ 66.76
84	WR01A00213		Slide Pan Lh   (Replaces: WR72X10073)			Immediately	$ 44.46
85	WR01F00500		Slide Control   (Replaces: WR17X12586)				$ 4.20
86	WR01F00501		Slide Control   (Replaces: WR17X12587)				$ 3.97
87	WR01L02103		Gasket Pan Crv Rear   (Replaces: WR14X10280)				$ 4.17
88	WR01A01044		Scr 8-18 Dg Trt20 5/8 S   (Replaces: WR01X10621)				$ 15.88
90	WR32X10699		Glass Cover Veg Pan		Appelez-nous	-
91	WR01F01711		Damper   (Replaces: WR17X12588)				$ 5.36
92	WR17X12589		Damper		Appelez-nous	-
95	WR01F01728		Wheel Pan Cover   (Replaces: WR01X10209)				$ 3.97
96	WR01A00639		Scr10-16pl Flt25 5/8s Zn   (Replaces: WR01X10968)				$ 4.20
99	WR17X12579		Gasket Cover Veg		Appelez-nous	-
102	WR01A00975		Support Veg Pan Asm   (Replaces: WR02X13504)			Immediately	$ 4.76
103	WR01L00470		Body Veg Pan   (Replaces: WR32X10701)				$ 65.21
104	WR32X10704		Window Veg Pan		Appelez-nous	-
105	WR17X12789		Handle Veg Pan		Appelez-nous	-
106	WR01A00626		Roller Pan   (Replaces: WR02X12902)				$ 3.97
107	WR02X12901		Cover Roller Pan		Appelez-nous	-
108	WR01L00468		Body Veg Pan   (Replaces: WR32X10700)			Immediately	$ 66.10
109	WR32X10703		Window Veg Pan		Appelez-nous	-
110	WR01L02429		Handle Veg Pan   (Replaces: WR17X12790)				$ 11.14
113	WR71X10820		Shelf Fixed & Cant Asm		Appelez-nous	-
115	WR32X10673		Snack Pan		Appelez-nous	-
