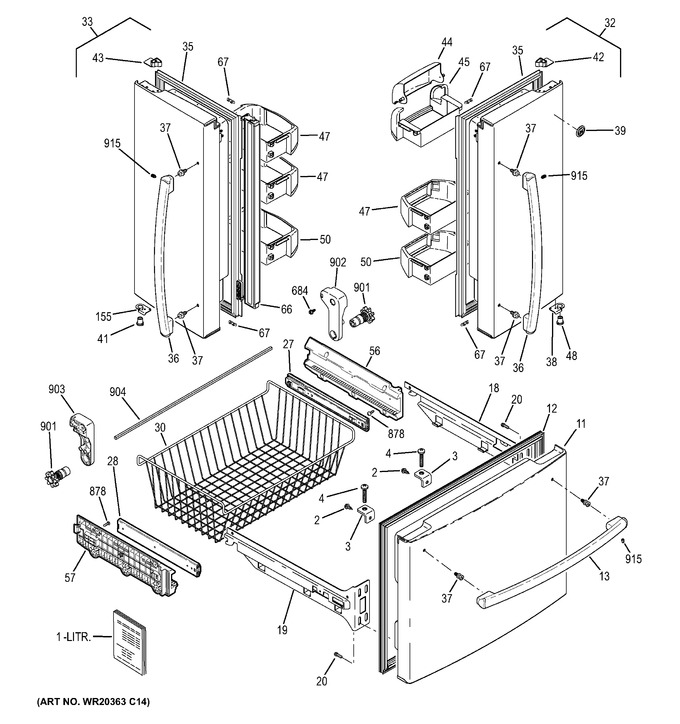

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-60603		Guide Owner		Appelez-nous	-
1	31-51781		Pm Mini Wiring Manual		Appelez-nous	-
2	WR01X10602		Scr 8-32 Ab Ihws 3/8 S		Appelez-nous	-
3	WR02X12870		Bracket Support		Appelez-nous	-
4	WR01X10843		Scr 1/4 - 20 Unc -2a		Appelez-nous	-
11	WR78X12515		Door Foam Fz Asm		Appelez-nous	-
12	WR01L02081		Gasket   (Replaces: WR14X10348)				$ 147.04
13	WR12X20313		Arc Handle Asm Fz		Appelez-nous	-
18	WR72X10299		Bracket Lower		Appelez-nous	-
19	WR72X10300		Bracket Lower		Appelez-nous	-
20	WR01A00633		Scr 1/4-20 Rt Flat 3/4 S   (Replaces: WR01X10885)				$ 3.97
27	WR17X20764		Slide Rh		Appelez-nous	-
28	WR17X20766		Slide Lh		Appelez-nous	-
30	WR01L00154		Basket Lower   (Replaces: WR21X10179)				$ 1,323.31
32	WR78X12265		Door Foam Ff French Asm		Appelez-nous	-
33	WR78X12267		Door Foam Ff French Asm		Appelez-nous	-
35	WR01L02126		Gasket French Wh   (Replaces: WR14X10282)			Immediately	$ 125.60
36	WR01L08658		Arc Handle Asm Ff   (Replaces: WR12X20312)				$ 76.62
37	WR01A01801		Fastener Door Handle   (Replaces: WR01X11007)			Immediately	$ 12.71
38	WR02X12908		Stop Door		Appelez-nous	-
39	WR01A01450		Badge Ge   (Replaces: WR04X10223)				$ 14.29
41	WR02X12914		Thimble Door Plastic		Appelez-nous	-
42	WR02X12412		Cam Ff Closure Rh		Appelez-nous	-
43	WR02X12413		Cam Ff Closure Lh		Appelez-nous	-
44	WR22X10063		Door Dairy		Appelez-nous	-
45	WR22X10073		Dairy Bin		Appelez-nous	-
47	WR01L08751		Shelf Module   (Replaces: WR71X20333)				$ 51.31
48	WR02X12411		Thimble Door Ff		Appelez-nous	-
50	WR32X20428		Shelf Module		Appelez-nous	-
56	WR02X20763		Holder Rail Fz Drawer		Appelez-nous	-
57	WR02X20765		Holder Rail Fz Drawer		Appelez-nous	-
66	WR17X12591		Mullion Articulation Asm		Appelez-nous	-
67	WR02X12473		Bumper French Door		Appelez-nous	-
155	WR02X12909		Stop Door		Appelez-nous	-
684	WR01X10252		Screw 10-32 Tt Hxw 5/16		Appelez-nous	-
878	WR01A00634		Scr 10-14 Pl Flt20 3/4 S   (Replaces: WR01X10939)				$ 3.97
901	WR01L04645		Wheel Sprocket   (Replaces: WR02X12904)				$ 9.92
902	WR01A00011		Arm Wheel Sprocket   (Replaces: WR02X12905)				$ 17.47
903	WR01A00012		Arm Wheel Sprocket   (Replaces: WR02X12906)				$ 10.22
904	WR02X12907		Axle Wheel Sprocket		Appelez-nous	-
915	WR01X20424		Set Screw		Appelez-nous	-
