SELECT A DIAGRAM

1 - Doors


2 - Freezer Section


3 - Freezer Shelves


4 - Fresh Food Section


5 - Fresh Food Shelves


6 - Case Parts


7 - Machine Compartment

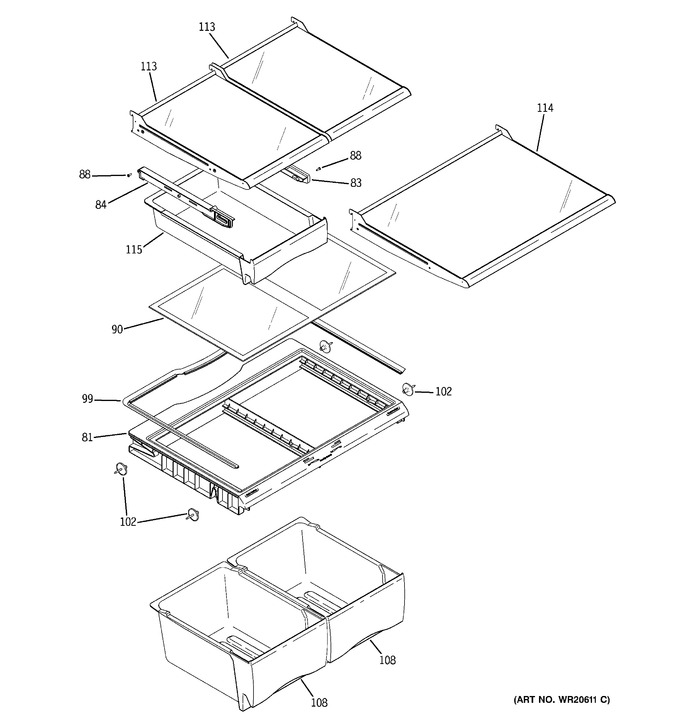

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
81	WR72X20427		Frame Cover Veg Pan		Appelez-nous	-
83	WR01A00212		Slide Pan Rh   (Replaces: WR72X10072)			Immediately	$ 66.76
84	WR01A00213		Slide Pan Lh   (Replaces: WR72X10073)			Immediately	$ 44.46
88	WR01A01044		Scr 8-18 Dg Trt20 5/8 S   (Replaces: WR01X10621)				$ 15.88
90	WR32X10671		Glass Cover Veg Pan		Appelez-nous	-
99	WR01L02106		Gasket   (Replaces: WR14X10265)				$ 34.02
102	WR01A00975		Support Veg Pan Asm   (Replaces: WR02X13504)			Immediately	$ 4.76
108	WR01L09339		Pan Veg   (Replaces: WR32X10672)			Immediately	$ 120.80
113	WR71X10902		Shelf Glass Asm		Appelez-nous	-
114	WR71X10904		Shelf Glass Asm		Appelez-nous	-
115	WR32X10673		Snack Pan		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
