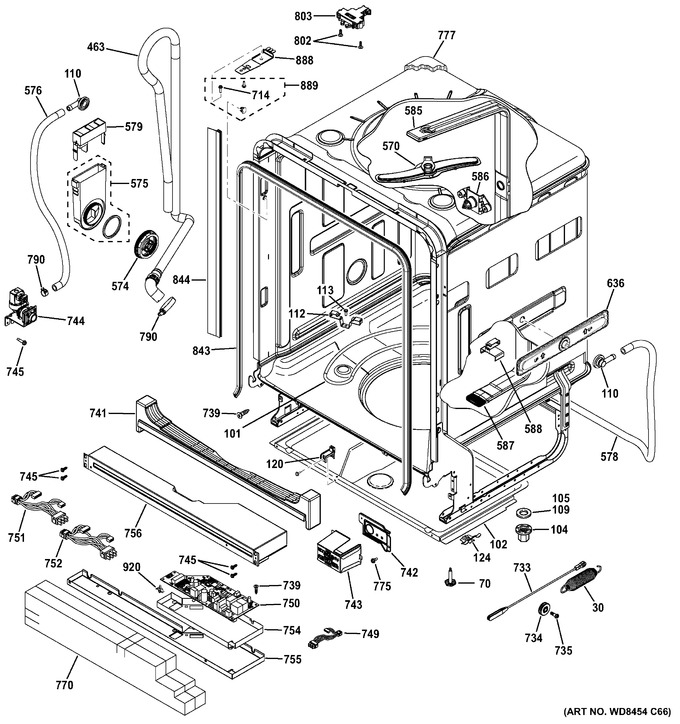

1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Upper Rack Assembly
4 - Lower Rack Assembly
5 - Sump & Filter Assembly
6 - Sump & Motor Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 30 | WG04A02197 | Spring Door (Replaces: WD03X20316) |
|
Immediately | $ 23.53 | ||||
| 70 | WG01A01600 | Screw Leveling (Replaces: WD12X10417) |
|
Immediately | $ 9.53 | ||||
| 101 | WD05X21294 | Element Heating Asm |
|
- | |||||
| 102 | WD18X20461 | Pan Leak |
|
- | |||||
| 104 | WD01X10070 | Nut Tower Heater |
|
- | |||||
| 110 | WD22X20538 | Fill Elbow |
|
- | |||||
| 112 | WD01X20120 | Support Heater Ss |
|
- | |||||
| 124 | WD18X20464 | Clip Leak Pan |
|
- | |||||
| 463 | WG04F12155 | Hose Loop Drain High (Replaces: WD24X10067) |
|
Immediately | $ 57.27 | ||||
| 570 | WG03A02167 | Arm Spray Upper Asm (Replaces: WD22X10088) |
|
Immediately | $ 98.12 | ||||
| 574 | WD01X20738 | Nut Water Inlet |
|
- | |||||
| 575 | WG04A04294 | Funnel And Gasket Asm (Replaces: WD12X21322) |
|
Immediately | $ 55.68 | ||||
| 576 | WD24X10064 | Hose Fill |
|
- | |||||
| 578 | WD21X20339 | Hose Fill |
|
- | |||||
| 579 | WD12X20835 | Cap Fill Funnel |
|
- | |||||
| 585 | WG04F06987 | Conduit Main Asm (Replaces: WD12X20117) |
|
$ 60.44 | |||||
| 586 | WD12X20118 | Docking Port Ss |
|
- | |||||
| 587 | WG04F06950 | Seal Conduit (Replaces: WD08X10098) |
|
$ 9.53 | |||||
| 588 | WD12X21675 | Shield Conduit |
|
- | |||||
| 636 | WG04L03242 | Side Blaster Asm (Replaces: WD22X20198) |
|
$ 34.94 | |||||
| 714 | WG04A01237 | Scr 8-18 B Hxw .480 S (Replaces: WD02X10160) |
|
$ 3.97 | |||||
| 733 | WG04F04517 | Cable Asm Pulley (Replaces: WD01X10569) |
|
Immediately | $ 19.06 | ||||
| 734 | WD16X10013 | Pulley Hinge |
|
- | |||||
| 735 | WD02X10206 | Pulley Screw |
|
- | |||||
| 739 | WZ5X158 | Screw Ground |
|
- | |||||
| 741 | WD01X20121 | Spacer Tub Front |
|
- | |||||
| 742 | WD12X10411 | Bracket Junction Box |
|
- | |||||
| 743 | WG04L01578 | Cover Junction Box (Replaces: WD12X10412) |
|
Immediately | $ 44.46 | ||||
| 744 | WG04F09808 | Valve Water Asm (Replaces: WD15X20326) |
|
Immediately | $ 79.72 | ||||
| 745 | WD02X10221 | Scr 10-32 Tt Hxw 14/25 S |
|
- | |||||
| 749 | WD21X10541 | Harness Asm Jumper |
|
- | |||||
| 750 | WG04A03757 | Control Board Main Good (Replaces: WD21X10532) |
|
$ 249.69 | |||||
| 751 | WD21X20739 | Harness Asm Ac |
|
- | |||||
| 752 | WD21X20186 | Harness Asm Dc |
|
- | |||||
| 754 | WD01X10583 | Shield Dielectric |
|
- | |||||
| 755 | WD30X10044 | Control Box Bottom |
|
- | |||||
| 756 | WD27X10390 | Control Box Top |
|
- | |||||
| 770 | WD01X10629 | Barrier Toekick |
|
- | |||||
| 775 | WD2X5166 | Scr 10-16x1/2 Ab Hexw S |
|
- | |||||
| 777 | WG04F06762 | Insulation Tub Blanket (Replaces: WD01X20187) |
|
$ 131.95 | |||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 802 | WR01X10065 | Screw 10-32 Gxtt Flp 595 |
|
- | |||||
| 803 | WG04F04726 | Latch Tub Side Standard (Replaces: WD21X10490) |
|
Immediately | $ 69.95 | ||||
| 843 | WG04A04003 | Gasket Tub (Replaces: WD08X20675) |
|
Immediately | $ 192.73 | ||||
| 844 | WD08X20199 | Right Side Trim Tub |
|
- | |||||
| 844 | WG04A05119 | Left Side Trim Tub (Replaces: WD08X20201) |
|
Immediately | $ 86.93 | ||||
| 844 | WD08X20200 | Center Trim Tub |
|
- | |||||
| 888 | WG04A03280 | Bracket Countertop (Replaces: WD01X10598) |
|
Immediately | $ 30.76 | ||||
| 889 | WG04A01079 | Ct Screw Asm (Replaces: WD35X10383) |
|
Immediately | $ 33.35 | ||||
| 920 | WD01X21975 | Clip Control Board |
|
- |
