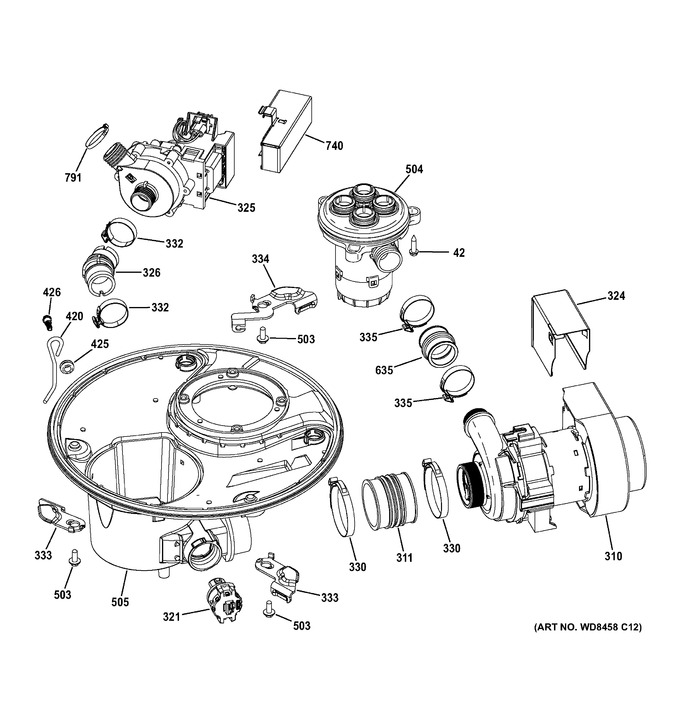

1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Upper Rack Assembly
4 - Lower Rack Assembly
5 - Sump & Filter Assembly
6 - Sump & Motor Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 42 | WD02X10110 | Screw #8-3/4 L Hx Hd Ss |
|
- | |||||
| 310 | WD26X20551 | Pump Wash Main Asm |
|
- | |||||
| 311 | WD24X10059 | Hose Wash Pump Inlet |
|
- | |||||
| 321 | WG04F05595 | Sensor Turbidity Asm (Replaces: WD21X10494) |
|
$ 50.92 | |||||
| 324 | WD01X10580 | Shield Wash Pump |
|
- | |||||
| 325 | WD35X20878 | Pump Drain Kit |
|
- | |||||
| 326 | WG04F04671 | Hose Elbow Drain (Replaces: WD24X10060) |
|
Immediately | $ 76.30 | ||||
| 332 | WD01X10573 | Clamp |
|
- | |||||
| 333 | WD01X10632 | Latch Cam |
|
- | |||||
| 334 | WD01X10575 | Latch Cam |
|
- | |||||
| 335 | WD01X10572 | Clamp |
|
- | |||||
| 420 | WD01X10579 | Hanger Drain Pump |
|
- | |||||
| 425 | WD01X10101 | Grommet |
|
- | |||||
| 426 | WD02X10094 | Wd02x10093 |
|
- | |||||
| 503 | WB01T10103 | Scr 10-16 Ab Hxw .532 |
|
- | |||||
| 504 | WG04A02646 | Active Diverter Asm Kit (Replaces: WD35X20598) |
|
$ 152.60 | |||||
| 505 | WD18X10055 | Sump Manifold |
|
- | |||||
| 635 | WD24X10058 | Hose Wash Pump Outlet |
|
- | |||||
| 740 | WD01X10584 | Shield Drain Pump |
|
- | |||||
| 791 | WW01A00722 | Clamp (Replaces: WD01X10611) |
|
$ 12.71 | |||||
| WG04A02187 | Attach Strip |
|
$ 20.65 | ||||||
| WG04A02180 | Attach Strip |
|
Immediately | $ 12.71 | |||||
| WG04A02147 | Scr 10-32 Gx Hxw 3/8 |
|
$ 3.97 | ||||||
| WG04A01454 | Kit Door Asm Outer |
|
$ 246.49 | ||||||
| WG04F09808 | Valve Water Asm (Replaces: WG04L05576) |
|
Immediately | $ 79.72 | |||||
| WG01A01653 | Toe Kick Asm Bk (Replaces: WG04A01322) |
|
Immediately | $ 45.24 | |||||
| WG04A01134 | Attache |
|
Immediately | $ 21.85 | |||||
| WG04A03757 | Machine Control Good (Replaces: WG03F05898) |
|
$ 249.69 | ||||||
| WG04A01338 | Wash Pump Kit |
|
$ 200.56 | ||||||
| WG04F12108 | Pump Drain Asm (Replaces: WG04L04531) |
|
Immediately | $ 208.41 | |||||
| WG04L03829 | Inner Rail Upr Rack Asm |
|
Immediately | $ 88.15 | |||||
| WG04L03242 | Side Blaster Asm |
|
$ 34.94 | ||||||
| WG04F09635 | Insulation Toe Kick (Replaces: WG04L03238) |
|
$ 10.81 | ||||||
| WG04L02735 | Trim Tub |
|
$ 18.81 | ||||||
| WG04A05239 | Module Detergent (Replaces: WG04F09253) |
|
Immediately | $ 108.73 | |||||
| WG04F09808 | Valve Water Asm (Replaces: WG04F05891) |
|
Immediately | $ 79.72 | |||||
| WG04A03669 | P2a Drain Pump Kit (Replaces: WG04F05383) |
|
Immediately | $ 305.97 | |||||
| WG04F05111 | Console Et Couvercle |
|
$ 27.00 | ||||||
| WG04F05026 | Bezel & Cvr Console Asm |
|
$ 480.92 | ||||||
| WG04F04857 | Switch Flood Asm |
|
Immediately | $ 100.20 | |||||
| WG04F04726 | Latch Tub Side Standard |
|
Immediately | $ 69.95 | |||||
| WG04F04678 | Boyau |
|
$ 16.35 | ||||||
| WG04F04671 | Hose Elbow Drain |
|
Immediately | $ 76.30 | |||||
| WG04A05153 | Element Heating Asm (Replaces: WG04F04624) |
|
Immediately | $ 173.90 | |||||
| WG04F04559 | Conduit Tiered Blast Asm |
|
$ 68.39 | ||||||
| WG04A03030 | Tc Inner Door Leak Kit |
|
$ 236.72 | ||||||
| WG04A01461 | Ens. Contre Porte Asm. (Replaces: WG04A02903) |
|
Immediately | $ 185.86 | |||||
| WG04F10015 | Boyau Asm. Ens. (Replaces: WG04A02645) |
|
$ 27.00 |
