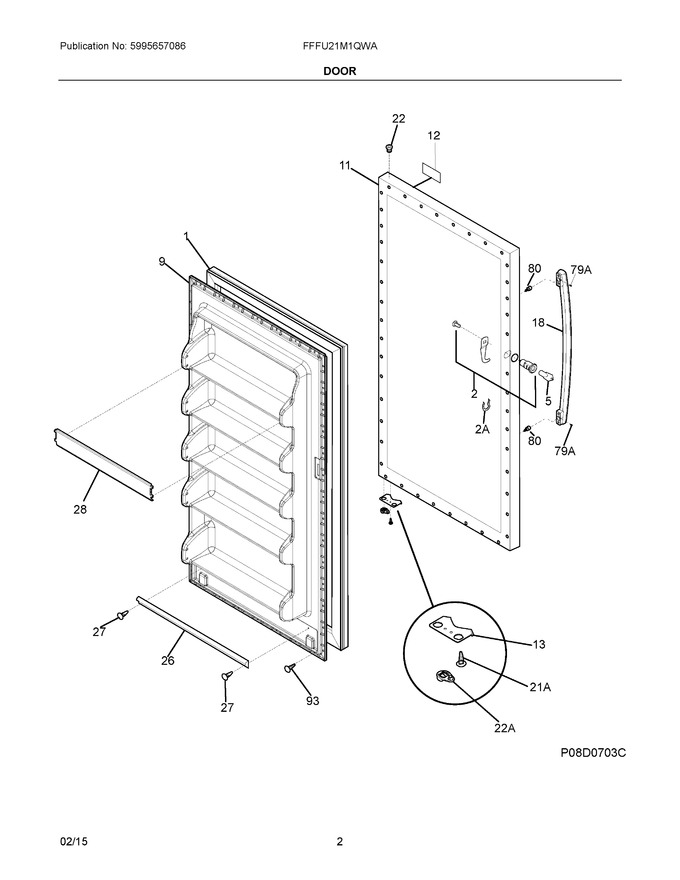

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304506131 | Gasket-door, White (Replaces: 216522378) |
|
Immediately | $ 266.47 | ||||
| 2 | 297318600 | Lock Assy |
|
$ 40.97 | |||||
| 5 | 297147700 | Key, Lock |
|
Immediately | $ 8.41 | ||||
| 9 | 297382900 | Panel-outer |
|
$ 253.58 | |||||
| 11 | 297316734 | Panel-outer Door, White |
|
$ 742.20 | |||||
| 12 | 242062801 | Nameplate, White |
|
$ 11.65 | |||||
| 13 | 297416200 | Door Stop |
|
$ 17.67 | |||||
| 18 | 5304493974 | Handle, White |
|
$ 175.92 | |||||
| 22 | 216970802 | Bearing, Hinge, Black, Top |
|
Immediately | $ 12.05 | ||||
| 26 | 297387100 | Gasket, Secondary |
|
$ 21.69 | |||||
| 27 | 5304472186 | Clip, Panel Mtg |
|
$ 12.85 | |||||
| 28 | 5304494023 | Rack, Door |
|
$ 161.46 | |||||
| 41 | 240578902 | Screw, Hex Head, 1/4-20x5/8, Hinge (Replaces: 297236250) |
|
Immediately | $ 15.75 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 20.67 | ||||
| 93 | 216858001 | Screw, Ph Truss Head, 8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 12.05 | ||||
| 21A | 297197500 | Screw, Door Stop Mtg, Fh38-16x.750, P Twin |
|
$ 16.07 | |||||
| 22A | 297415900 | Ramp, Door Closer |
|
Immediately | $ 27.49 | ||||
| 2A | 297213300 | Clip, Spring |
|
$ 10.17 | |||||
| 79A | 297295900 | Screw-set |
|
Immediately | $ 21.69 | ||||
| NI | 297410600 | Screw, 8-18 X .500 |
|
Immediately | $ 3.94 | ||||
| NI | 240537301 | Nut-anchor, Door Hdl Screw |
|
$ 12.60 | |||||
| NIA | 5304406520 | Clip, Panel Mtg Kit, (40) |
|
$ 139.81 | |||||
| NIA | 297407700 | Handle-intallation Kit |
|
$ 11.25 |
