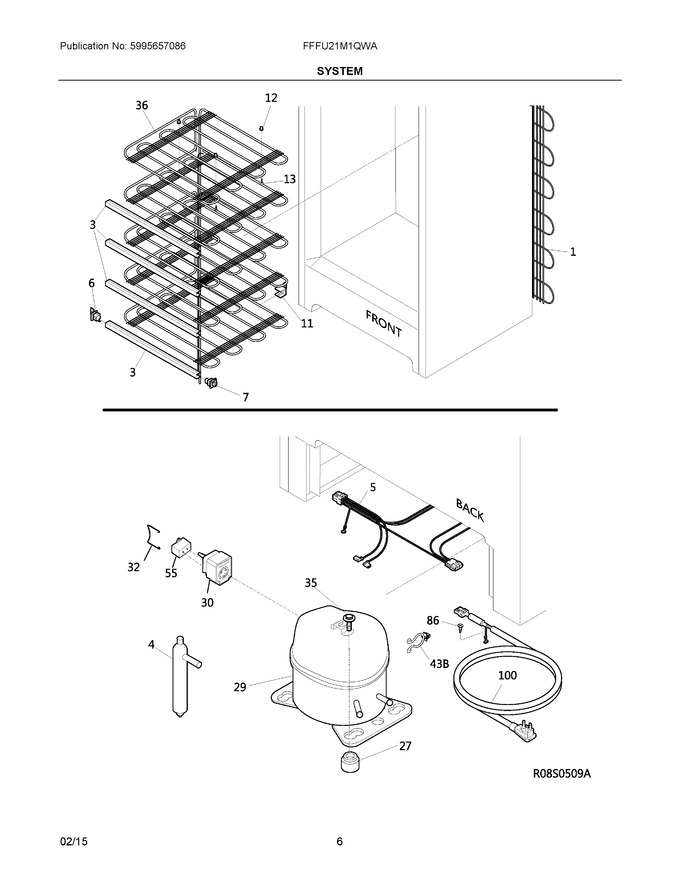

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300083897 | Condenser |
|
$ 598.19 | |||||
| 3 | 5304509723 | Trim-shelf, Evaporator (Replaces: 216847806) |
|
Immediately | $ 35.34 | ||||
| 4 | 5303305677 | Filter-dryer (Replaces: 297396820) |
|
Immediately | $ 35.19 | ||||
| 5 | 297171900 | Harness-main, W/light |
|
$ 73.71 | |||||
| 6 | 297001600 | Support-shelf, Front Lh |
|
$ 20.09 | |||||
| 7 | 297001500 | Support-shelf, Front Rh |
|
$ 20.09 | |||||
| 11 | 216474600 | Support-rear Shelf |
|
$ 16.55 | |||||
| 12 | 216225700 | Grommet-spacer |
|
$ 7.77 | |||||
| 13 | 216138901 | Screw, Hex Sems, 8-18ab X 1.00, Evap |
|
- | |||||
| 27 | 216337701 | Screw, Hwh, 10-24 X 0.500, Swage |
|
$ 16.01 | |||||
| 29 | 240550948 | Compressor, Dgk57c (Replaces: 297414053) |
|
Immediately | $ 325.00 | ||||
| 30 | 297259515 | Controller, Compressor (Replaces: 297259502) |
|
$ 82.69 | |||||
| 32 | 216954300 | Clip, Controller |
|
$ 18.90 | |||||
| 35 | 216273000 | Clip, Wire Retainer |
|
$ 24.91 | |||||
| 36 | 5304506302 | Evaporator, Tubing Assy, White (Replaces: 297286000) |
|
$ 360.66 | |||||
| 55 | 297286803 | Capacitor-run |
|
Immediately | $ 31.97 | ||||
| 86 | 216036601 | Screw, Rwhd, 8-32a X 0.500, Gx-ca |
|
$ 15.17 | |||||
| 100 | 297366805 | Cord, Power (Replaces: 297366804) |
|
$ 76.31 | |||||
| 35A | 297368500 | Bolt, Compressor |
|
- | |||||
| 43B | 297315800 | Clip, Wire |
|
$ 11.25 | |||||
| NI | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 14.96 | ||||
| NI | 241500305 | Screw, Self Pierce, #8, 18x.63 (Replaces: 297174300) |
|
$ 3.37 |
