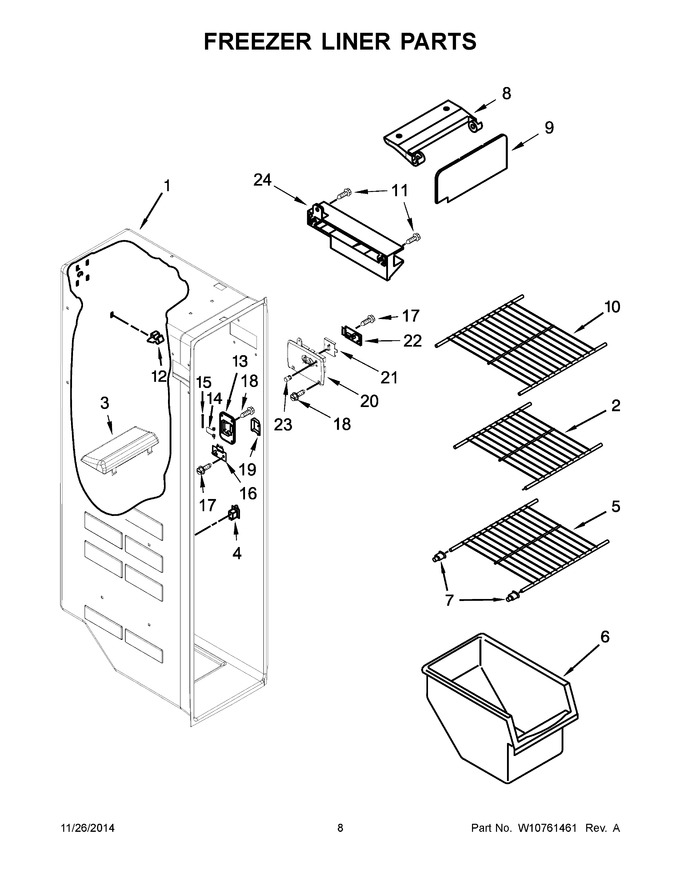

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Seviced) |
|
- | |||||
| 2 | WPW10318953 | Shelf, Wire (Replaces: W10318953) |
|
Immediately | $ 87.76 | ||||
| 3 | WPW10515057 | Led Light Assembly, Tapered Lens (Replaces: W10515057) |
|
Immediately | $ 47.29 | ||||
| 4 | W11457217 | Switch, Rocker Arm Combination (freezer) (Replaces: 1115373) |
|
$ 40.09 | |||||
| 5 | WPW10318952 | Shelf, Wire (Replaces: W10318952) |
|
Immediately | $ 92.48 | ||||
| 6 | WP2309758 | Freezer Bin (Replaces: 2309758) |
|
Immediately | $ 130.69 | ||||
| 7 | WPW10130299 | Cup, Shelf (Replaces: W10130299) |
|
Immediately | $ 14.70 | ||||
| 8 | WP2198641 | Bracket, Icemaker Cover (Replaces: 2198641) |
|
$ 7.55 | |||||
| 9 | W10180062 | Cover, Icemaker |
|
$ 76.19 | |||||
| 10 | WPW10318960 | Shelf, Wire (short) (Replaces: W10318960) |
|
Immediately | $ 94.63 | ||||
| 11 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 12 | 2215823 | Clip, Air Duct (Replaces: 2315163) |
|
$ 10.94 | |||||
| 13 | WP2198587 | Cover, Emitter (Replaces: 2198587) |
|
$ 110.83 | |||||
| 14 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 91.43 | |||||
| 15 | WP2198634 | Pin, Door (Replaces: 2198634) |
|
$ 18.65 | |||||
| 16 | W11629974 | Board, Emitter Circuit (Replaces: W10193840) |
|
Immediately | $ 421.12 | ||||
| 17 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.79 | |||||
| 18 | WPW10142283 | Screw (white) (Replaces: 8281185) |
|
$ 10.33 | |||||
| 19 | WP2198633 | Flipper, Shut Off (Replaces: 2198633) |
|
Immediately | $ 50.68 | ||||
| 20 | W10173569 | Cover, Receiver |
|
$ 66.93 | |||||
| 21 | 2315398 | Slide, Icemaker Shut Off |
|
$ 11.45 | |||||
| 22 | W11629974 | Board, Receiver Circuit (Replaces: W10290817) |
|
Immediately | $ 421.12 | ||||
| 23 | WP2198643 | Lens, Receiver (Replaces: 2198643) |
|
$ 8.59 | |||||
| 24 | 2212321 | Slide - I/m Mounting (right Hand) |
|
$ 67.14 |
