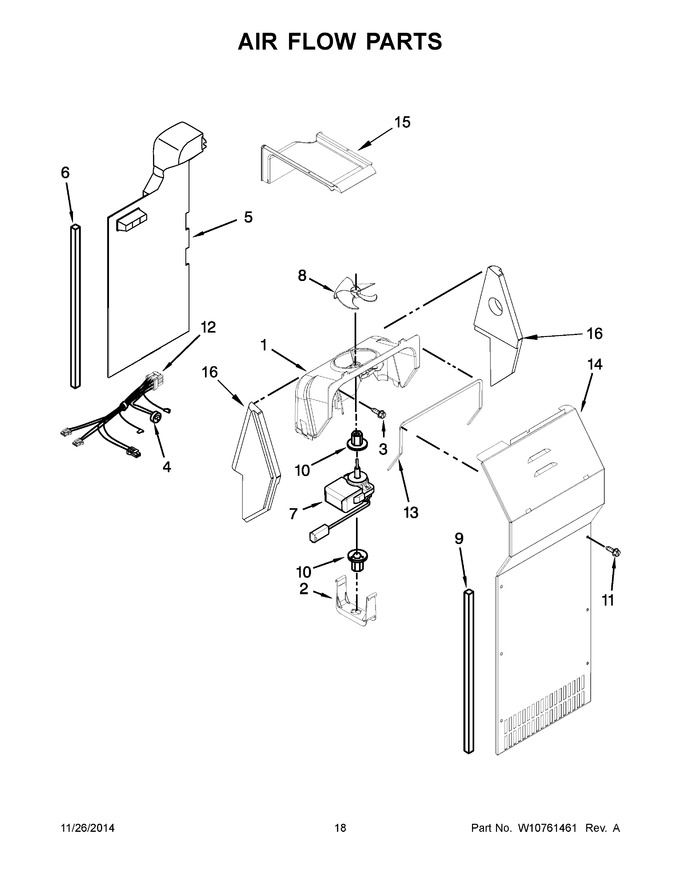

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11254898		Scroll, Fan   (Replaces: 2182119)			Immediately	$ 339.43
2	W11671527		Retainer, Fan Motor   (Replaces: W10260421)				$ 24.00
3	WP489478		Screw   (Replaces: 489478)				$ 8.18
4	WPW10225581		Bi-metal, Defrost   (Replaces: W10225581)			Immediately	$ 50.77
5	2312009		Duct, Freezer Air				$ 92.05
6	2313327		Gasket		Appelez-nous	-
7	4389144		Fan Motor   (Replaces: W10312647)			Immediately	$ 78.61
8	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 43.41
9	WP2304241		Gasket   (Replaces: 2304241)			Immediately	$ 86.94
10	WP2176759		Grommet, Motor   (Replaces: 2176759)				$ 8.16
11	WP693995		Screw   (Replaces: W10142292)			Immediately	$ 7.55
12	W10539759		Harness, Evaporator Fan				$ 81.17
13	WP2304241		Gasket   (Replaces: 2304241)			Immediately	$ 86.94
14	W10482512		Cover, Evaporator		Appelez-nous	-
15	2313359		Duct, Upper   (Replaces: W10272514)				$ 110.22
16	4388358		Support, Fan Scroll (left Hand)   (Replaces: 2203596)				$ 32.72
16A	4388358		Support, Fan Scroll (right Hand)   (Replaces: 2203595)				$ 32.72
