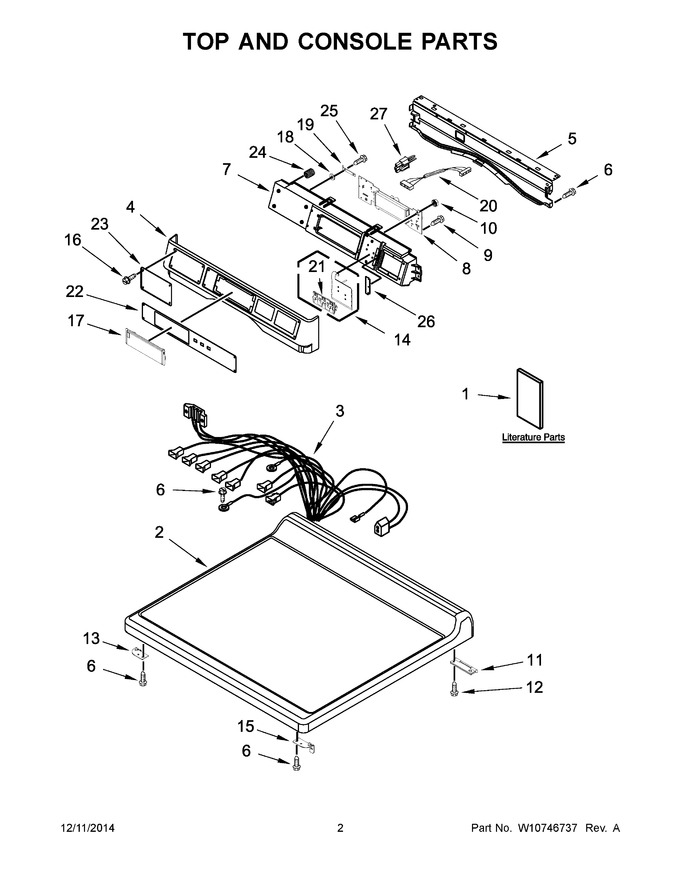

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10746731		Instructions, Installation		Appelez-nous	-
2	W11622909		Top (white)   (Replaces: W10137410)		Appelez-nous	-
3	W10745628		Harness, Main		Appelez-nous	-
4	W10779120		Console (outer)   (Replaces: W10137459)				$ 124.78
5	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 170.79
6	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
7	W11790400		Console (inner)   (Replaces: W10137427)		Appelez-nous	-
8	WPW10166385		User-interface Assembly   (Replaces: W10166387)			Immediately	$ 611.57
9	489136		Screw				$ 9.72
10	WPW10139046		Nut   (Replaces: W10139046)				$ 8.31
11	WP8565018		Hinge & Pin Assembly (white)   (Replaces: 8565018)				$ 103.81
12	WP488627		Screw   (Replaces: 342055)				$ 7.30
13	W10137445		Bracket - Top Panel, Left		Appelez-nous	-
14	WPW10135255		Switch, Membrane & Backer Plate   (Replaces: W10135255)				$ 197.47
15	W10137444		Bracket - Top Panel, Right		Appelez-nous	-
16	WPW10137457		Screw   (Replaces: W10137457)				$ 7.07
17	W11637765		Cover, Display   (Replaces: W10267645)				$ 62.63
18	W10189075		Washer, Brass				$ 17.22
19	W10532923		Ground-jumper, Tab				$ 13.61
20	W10166307		Harness, Communication				$ 37.19
21	WPW10424308		Button, Push   (Replaces: W10424308)			Immediately	$ 19.30
22	W10334891		Fascia, Console		Appelez-nous	-
23	W10137461		Dispenser, Fascia		Appelez-nous	-
24	WPW10189313		Insert   (Replaces: W10189313)				$ 8.31
25	WP488234		Screw   (Replaces: 488234)				$ 6.37
26	W10187276		Seal, Console		Appelez-nous	-
27	W11129439		Jumper, Switch Service/vault   (Replaces: W10133282)				$ 15.89
1A	W10731776		Tech Sheet		Appelez-nous	-
