SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Console Parts

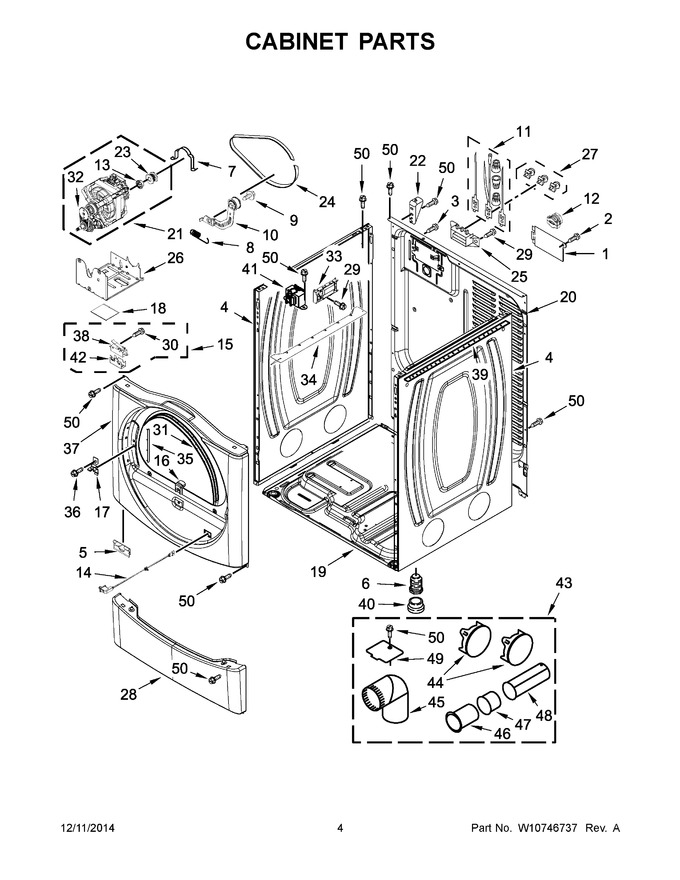

03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10601020		Cover, Terminal Block		Appelez-nous	-
2	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 7.43
3	W10850756		Screw   (Replaces: 8533974)				$ 7.38
4	W10542714		Cabinet (white)				$ 315.52
5	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 19.95
6	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 7.70
7	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.40
8	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 23.22
9	WP3389420		Screw   (Replaces: 3389420)				$ 7.76
10	WPW10344192		Assembly, Idler   (Replaces: W10344192)			Immediately	$ 85.11
11	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 95.44
12	W11704629		Relief, Strain (power Cord)   (Replaces: 8316644)		Appelez-nous	-
13	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 125.17
14	W11192658		Assembly, Door Switch   (Replaces: W10459028)		Appelez-nous	-
15	W11236387		Assembly, Switch   (Replaces: W10259136)		Appelez-nous	-
16	8580015		Ramp, Door				$ 79.42
17	WP8565122		Strike, Door   (Replaces: 8565122)			Immediately	$ 7.79
18	W11113654		Motor, Sound Pad   (Replaces: W10212660)				$ 20.96
19	W11215531		Base, Cabinet   (Replaces: W10225178)				$ 328.82
20	W10225180		Panel, Rear		Appelez-nous	-
21	W11215537		Assembly, Motor 50 Hz.   (Replaces: W10747112)				$ 504.43
22	W10137398		Stop, Top Panel		Appelez-nous	-
23	W10167237		Pulley		Appelez-nous	-
24	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 40.19
25	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 21.75
26	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 121.16
27	279393		Screw Kit, Terminal Block			Immediately	$ 50.09
28	WP8540621		Panel, Toe (white)   (Replaces: 8540621)				$ 170.44
29	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.43
30	3400934		Assembly, Screw And Insulator		Appelez-nous	-
31	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 28.28
32	WP3405160		Belt, Drive (blower Wheel)   (Replaces: 3405160)			Immediately	$ 33.29
33	W11315680		Board, Control   (Replaces: W10166377)				$ 537.83
34	WP8563727		Bracket, Control   (Replaces: 8563727)				$ 161.72
35	8565043		Plug, Front Panel				$ 87.56
36	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.08
37	W11192661		Panel, Front (white)   (Replaces: W10551281)		Appelez-nous	-
38	W10410873		Assembly, Switch Actuator		Appelez-nous	-
39	WP8318396A		Seal, Foam   (Replaces: 8318396)				$ 35.74
40	WP3391943		Boot, Foot   (Replaces: 3391943)				$ 7.39
41	W10751202		Transformer, 240-22.5 Vac   (Replaces: W10633921)				$ 202.81
42	8564011		Bracket, Switch				$ 17.17
43	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.75
44	W10470674		Multivent Plug (white)   (Replaces: 697750)			Immediately	$ 76.75
45	WPW10416072		Elbow   (Replaces: 49026)				$ 25.34
46	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 86.36
47	WPW10331278		Pipe, Exhaust (short)   (Replaces: 8563750)				$ 74.61
48	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 83.92
49	WPW10354249		Plate, Cover   (Replaces: 8066115)				$ 8.47
50	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
NI	49621		Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 7.70
