SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts

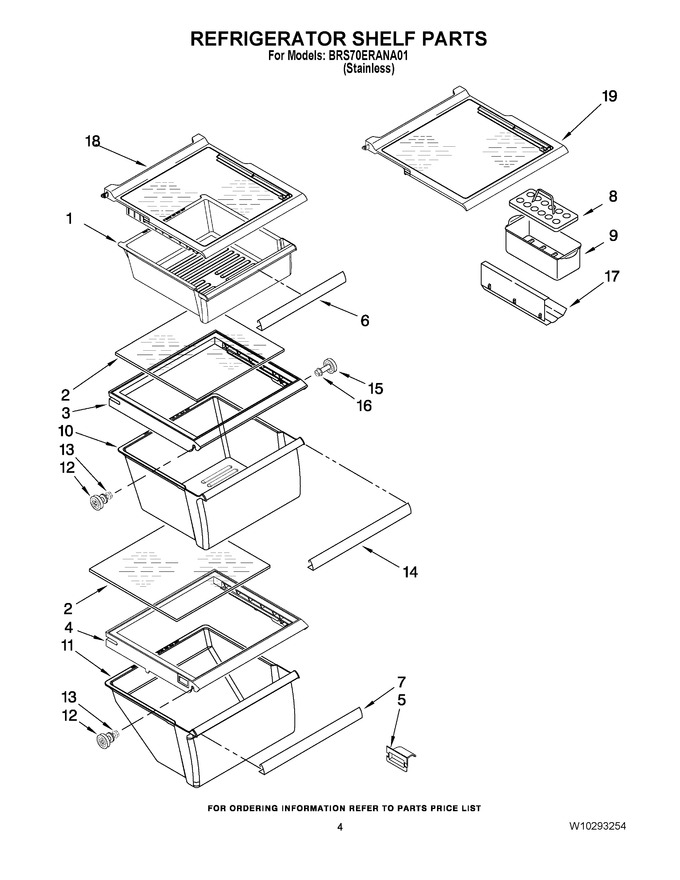

03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2309517		Snack Pan   (Replaces: 2309518)				$ 133.06
2	W10864399		Glass, Cover   (Replaces: 2179259)				$ 232.03
3	W10508993		Cover, Crisper   (Replaces: 2209698)				$ 305.85
4	W10508993		Cover, Meat Pan   (Replaces: 2311726)				$ 305.85
5	2179350		Deflector				$ 85.89
6	WP2179243		Trim, Handle   (Replaces: 2309519)				$ 109.65
7	WP2179234		Trim, Meat Pan   (Replaces: 2255592)				$ 88.57
8	WP2177817		Egg Carrier   (Replaces: 2164373)				$ 18.78
9	W10136387A		Egg Bin   (Replaces: 2311722)				$ 19.54
10	WP2188661		Crisper Pan   (Replaces: 2188653)			Immediately	$ 162.07
11	WP2188664		Meat Pan   (Replaces: 2188654)			Immediately	$ 92.70
12	W11223328		Stud Assembly   (Replaces: W10173126)			Immediately	$ 14.77
13	WP3-24004-109		Screw   (Replaces: W10191954)				$ 9.14
14	WP2179234		Trim, Pan   (Replaces: 2179234)				$ 88.57
15	W11527119		Stud Assembly   (Replaces: W10173127)		Appelez-nous	-
16	W10191952		Screw				$ 5.65
17	W10777924		Rack, Wine & Egg   (Replaces: 2311357)				$ 24.78
18	WPW10276341		Shelf Assembly, Spillguard   (Replaces: 2309560)				$ 217.50
19	WPW10276348		Shelf Assembly, Spillguard   (Replaces: 2309524)			Immediately	$ 223.91

    View Diagram in Separate Window       Print Part List
