SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts

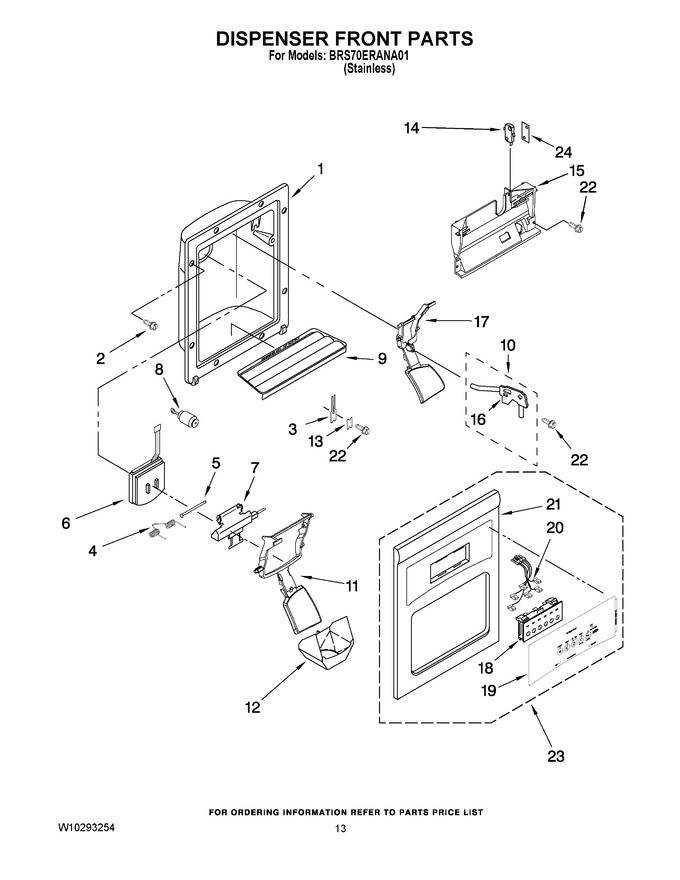

08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W11245710		Screw   (Replaces: W10029710)			Immediately	$ 14.75
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 12.36
4	WPW10224328		Spring, Torsion   (Replaces: 2304772)				$ 87.40
5	WP2196195		Pin   (Replaces: 2196195)				$ 15.31
6	WP2180353		Door, Ice   (Replaces: 2180353)			Immediately	$ 26.83
7	2304355		Door Mechanism Assembly		Appelez-nous	-
8	2205686		Mechanism Delay		Appelez-nous	-
9	W11106297		Grille Overflow   (Replaces: 2206670AP)				$ 140.66
10	2318280		Water Fitting Assembly (includes Water Tube)		Appelez-nous	-
11	2255431AP		Lever, Ice Dispenser				$ 49.57
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 30.02
13	WP2195051		Strain Relief   (Replaces: 2195051)				$ 12.54
14	WP2162361		Switch (2)   (Replaces: 2162361)			Immediately	$ 28.71
15	WP2180226		Bracket, Control   (Replaces: 2183771)			Immediately	$ 26.97
16	WP2304673		Bracket, Dispenser   (Replaces: 2318279)				$ 16.38
17	WP2255432AP		Lever, Water Dispenser   (Replaces: 2255432AP)				$ 122.03
18	WP2180236		Switch Assembly   (Replaces: 2180236)				$ 288.00
19	N/P		Overlay, Front Cover (not Available Order No.23)		Appelez-nous	-
20	2325305		Wire Assembly		Appelez-nous	-
21	N/P		Front Cover, Housing (not Available, Order No.23)		Appelez-nous	-
22	W10029740		Screw		Appelez-nous	-
23	W10139517		Front Cover Assembly (includes Items 18, 19, 20 & 21)		Appelez-nous	-
24	625834		Spacer, Switch (2)				$ 7.99

    View Diagram in Separate Window       Print Part List
