01 - Cover Sheet

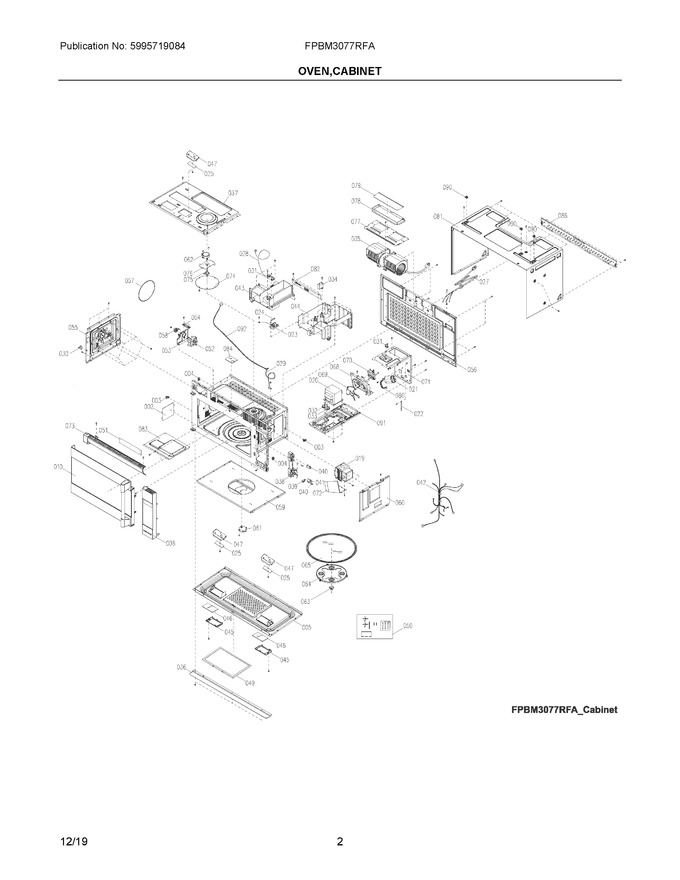

02 - Oven,cabinet
03 - Control Panel,door,misc.
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304509435 | Cover, Waveguide (Replaces: 5304464061) |
|
Immediately | $ 15.27 | ||||
| 3 | 5304514283 | Support A, Shelf, Rear (Replaces: 5304488341) |
|
$ 12.16 | |||||
| 4 | 5304488342 | Support B, Shelf, Front |
|
$ 20.88 | |||||
| 5 | 5304499574 | Base, Unit Chassis |
|
$ 265.39 | |||||
| 6 | 5304499575 | Control Assembly, Stainless; Before Serial No. Kg51301536 |
|
- | |||||
| 10 | 5304538973 | Door Assembly, Stainless, W/pcb; Before Serial No. Kg51301536 (Replaces: 5304499872) |
|
$ 421.82 | |||||
| 19 | 5304488355 | Magnetron, High Voltage |
|
- | |||||
| 20 | 5304488356 | Transformer, High Voltage |
|
- | |||||
| 21 | 5304488357 | Capacitor, High Voltage |
|
- | |||||
| 22 | 5304488358 | Diode, High Voltage |
|
$ 35.32 | |||||
| 23 | 5304515179 | Filter, Noise, Electronic (Replaces: 5304499579) |
|
Immediately | $ 103.60 | ||||
| 24 | 5304509451 | Fuse (Replaces: 5304488359) |
|
Immediately | $ 14.45 | ||||
| 25 | 5304509445 | Lamp Assembly, Led (Replaces: 5304499540) |
|
Immediately | $ 57.28 | ||||
| 27 | 5304512501 | Power Cord, Electric (Replaces: 5304464890) |
|
$ 118.08 | |||||
| 28 | 5304509652 | Sensor, Humidity (Replaces: 5304481519) |
|
$ 339.40 | |||||
| 29 | 5304488361 | Thermistor |
|
$ 103.95 | |||||
| 30 | 5304478919 | Thermostat, 160/95 *h |
|
$ 29.14 | |||||
| 31 | 5304509469 | Thermostat (Replaces: 5304464073) |
|
Immediately | $ 24.20 | ||||
| 32 | 5304509474 | Thermostat, Cutout, Transformer (Replaces: 5304464093) |
|
Immediately | $ 23.30 | ||||
| 33 | 5304509475 | Thermostat, Cutout, Vent Motor (Replaces: 5304464094) |
|
Immediately | $ 21.69 | ||||
| 34 | 5304491512 | Capacitor, Start |
|
$ 91.67 | |||||
| 35 | 5304513464 | Fan Assembly, Vent, With Motor (Replaces: 5304488362) |
|
$ 619.63 | |||||
| 36 | 5304499611 | Shield, Heat, Base Plate |
|
- | |||||
| 37 | 5304499877 | Panel, Insulator, Upper |
|
- | |||||
| 38 | 5304509457 | Latch Hook (Replaces: 5304499580) |
|
Immediately | $ 48.65 | ||||
| 39 | 5304509458 | Lever, Switch (Replaces: 5304464097) |
|
Immediately | $ 11.30 | ||||
| 40 | 5304509460 | Switch, Interlock (Replaces: 5304464099) |
|
Immediately | $ 59.18 | ||||
| 41 | 5304509459 | Switch, Monitor (Replaces: 5304464098) |
|
Immediately | $ 34.27 | ||||
| 42 | 5304499581 | Wiring Harness, Main |
|
- | |||||
| 43 | 5304488371 | Duct, Air Guide, Left |
|
- | |||||
| 44 | 5304488372 | Duct, Air Guide, Right |
|
- | |||||
| 45 | 5304481505 | Frame, Lens Holder |
|
$ 77.92 | |||||
| 46 | 5304464103 | Lens, Cooktop Lamp, Glass |
|
$ 39.53 | |||||
| 47 | 5304499582 | Cover, Lamp |
|
- | |||||
| 49 | 5304513468 | Filter, Grease, Washable (Replaces: 5304499583) |
|
$ 177.42 | |||||
| 50 | 5304491760 | Mounting Kit, With Templates (Replaces: 5304488485) |
|
$ 134.95 | |||||
| 51 | OTRFILTER | Filter, Air, Charcoal (Replaces: 5304488379) |
|
Immediately | $ 42.85 | ||||
| 52 | 5304488380 | Motor, Convection Fan |
|
Immediately | $ 300.30 | ||||
| 53 | 5304488381 | Bracket, Motor Mount |
|
- | |||||
| 54 | 5304488382 | Connector, Motor/bracket |
|
- | |||||
| 55 | 5304499599 | Convection Fan Assembly |
|
- | |||||
| 56 | 5304488384 | Panel, Cabinet Back |
|
- | |||||
| 57 | 5304502502 | Belt, Convection Fan (Replaces: 5304488385) |
|
$ 63.46 | |||||
| 58 | 5304488386 | Pulley, Fan Motor |
|
$ 34.65 | |||||
| 59 | 5304499878 | Panel, Insulator, Bottom |
|
$ 183.57 | |||||
| 60 | 5304488388 | Panel, Insulator, Right Side |
|
- | |||||
| 61 | 5304509440 | Motor, Turntable (Replaces: 5304464113) |
|
Immediately | $ 131.25 | ||||
| 62 | 5304488389 | Motor, Stirrer Fan |
|
$ 191.81 | |||||
| 63 | 5304513472 | Coupler, Turntable/motor (Replaces: 5304499600) |
|
Immediately | $ 21.96 | ||||
| 64 | 5304518907 | Support, Turntable Ring, Brown (Replaces: 5304488390) |
|
$ 88.57 | |||||
| 65 | 5304513473 | Turntable, Tray, Glass (Replaces: 5304463319) |
|
$ 232.46 | |||||
| 68 | 5304488393 | Duct, Cooling Fan, Housing |
|
$ 81.93 | |||||
| 69 | 5304509473 | Fan Blade, Cooling Fan (Replaces: 5304464257) |
|
$ 17.19 | |||||
| 70 | 5304499602 | Motor, Blower Fan |
|
$ 262.34 | |||||
| 71 | 5304488463 | Duct, Air Vent, Rear, Fan Mount |
|
- | |||||
| 72 | 5304488464 | Deflector, Air Vent, Magnetron |
|
$ 34.65 | |||||
| 73 | 5304513480 | Grille, Exhaust Vent, Black (Replaces: 5304491516) |
|
$ 163.43 | |||||
| 74 | 5304488415 | Cover, Stirrer Fan |
|
$ 55.43 | |||||
| 75 | 5304509650 | Shaft, Stirrer Fan (Replaces: 5304488416) |
|
$ 21.69 | |||||
| 76 | 5304509649 | Stirrer Fan (Replaces: 5304488417) |
|
$ 17.67 | |||||
| 77 | 5304488418 | Cover, Vent Motor |
|
$ 90.56 | |||||
| 78 | 5304509485 | Frame, Damper Housing, Exhaust Adapter (Replaces: 5304464120) |
|
Immediately | $ 32.14 | ||||
| 79 | 5304509486 | Damper, Door, Exhaust Adapter (Replaces: 5304464119) |
|
Immediately | $ 37.62 | ||||
| 80 | 5304488419 | Retainer, Capacitor Strap |
|
- | |||||
| 81 | 5304499603 | Cabinet, Outer Casing |
|
- | |||||
| 82 | 5304488421 | Shield, Air Duct |
|
- | |||||
| 83 | 5304488422 | Cover, Lamp, Oven Cavity |
|
- | |||||
| 84 | 5304488423 | Lens, Lamp Glass, Oven Cavity |
|
- | |||||
| 86 | 5304509487 | Plate, Mounting, Rear (Replaces: 5304488426) |
|
Immediately | $ 66.25 | ||||
| 90 | 5304509436 | Mounting Nut Kit (Replaces: 5304464598) |
|
Immediately | $ 16.34 | ||||
| 91 | 5304488424 | Base, Transformer |
|
- | |||||
| 92 | 5304488363 | Wire, Connector, Pc Board; Before Serial No. Kg51301536 |
|
$ 172.46 | |||||
| 10A | 5304504071 | Door Assembly, Stainless, W/pcb; Serial No. Kg51301536 And Later |
|
$ 1,091.41 | |||||
| 6A | 5304504069 | Control Assembly, Stainless; Serial No. Kg51301536 And Later |
|
$ 774.27 | |||||
| 92A | 5304504073 | Wire, Connector, Pc Board; Serial No. Kg51301536 And Later |
|
$ 145.53 | |||||
| NI | 5304499876 | Screw Kit, All |
|
Immediately | $ 39.52 |
