SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven,cabinet

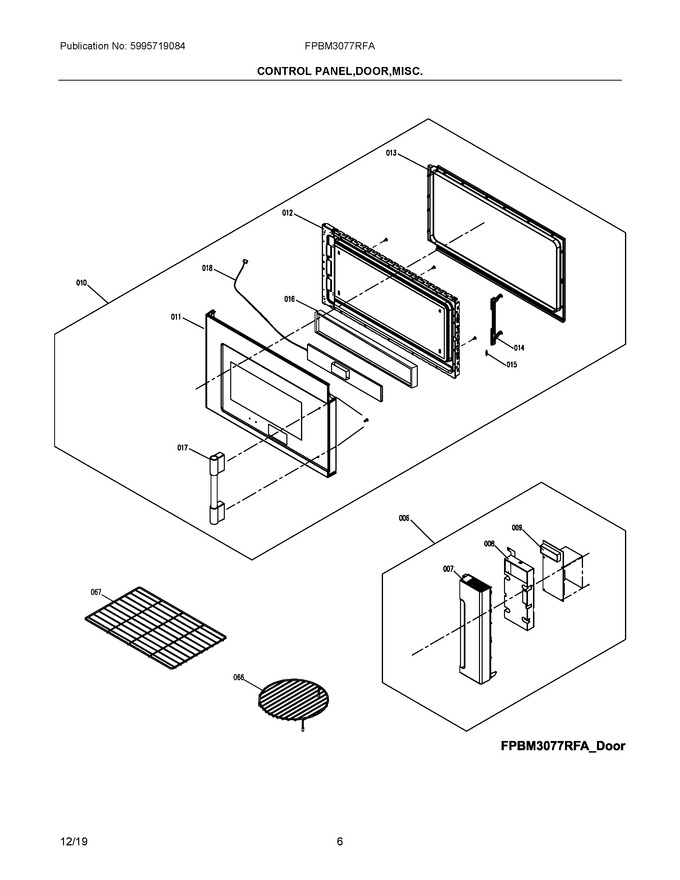

03 - Control Panel,door,misc.


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5304499575		Control Assembly, Stainless; Before Serial No. Kg51301536		Appelez-nous	-
7	5304504069		Control Panel, W/membrane, Ss   (Replaces: 5304499576)				$ 774.27
8	5304491499		Panel, Control Mount, Bracket				$ 92.14
9	5304499577		Pc Board, Main, Control/power; Before Serial No. Kg51301536		Appelez-nous	-
10	5304538973		Door Assembly, Stainless, W/pcb; Before Serial No. Kg51301536   (Replaces: 5304499872)				$ 421.82
11	5304537776		Panel, Outer Door, Stainless   (Replaces: 5304499578)		Appelez-nous	-
12	5304488350		Panel, Inner Door				$ 282.79
13	5304513453		Frame, Choke Cover, Inner Door   (Replaces: 5304488351)				$ 58.64
14	4056021605		Latch, Door   (Replaces: 5304477389)			Immediately	$ 4.10
15	5304521953		Spring, Door Latch   (Replaces: 5304464069)				$ 8.03
16	5304499873		Frame, Display Board, Cover				$ 67.33
17	5304513455		Handle Assembly, Door, Stainless   (Replaces: 5304499874)			Immediately	$ 208.15
18	5304499875		Pc Board, Display/input; Before Serial No. Kg51301536			Immediately	$ 477.94
66	5304523266		Rack, Round, Wire, 3-leg   (Replaces: 5304499601)				$ 89.96
67	5304488392		Shelf, Wire				$ 263.47
10A	5304504071		Door Assembly, Stainless, W/pcb; Serial No. Kg51301536 And Later				$ 1,091.41
18A	5304504072		Pc Board, Display/input; Serial No. Kg51301536 And Later			Immediately	$ 327.60
6A	5304504069		Control Assembly, Stainless; Serial No. Kg51301536 And Later				$ 774.27
9A	5304504070		Pc Board, Main, Control/power; Serial No. Kg51301536 And Later				$ 367.76
