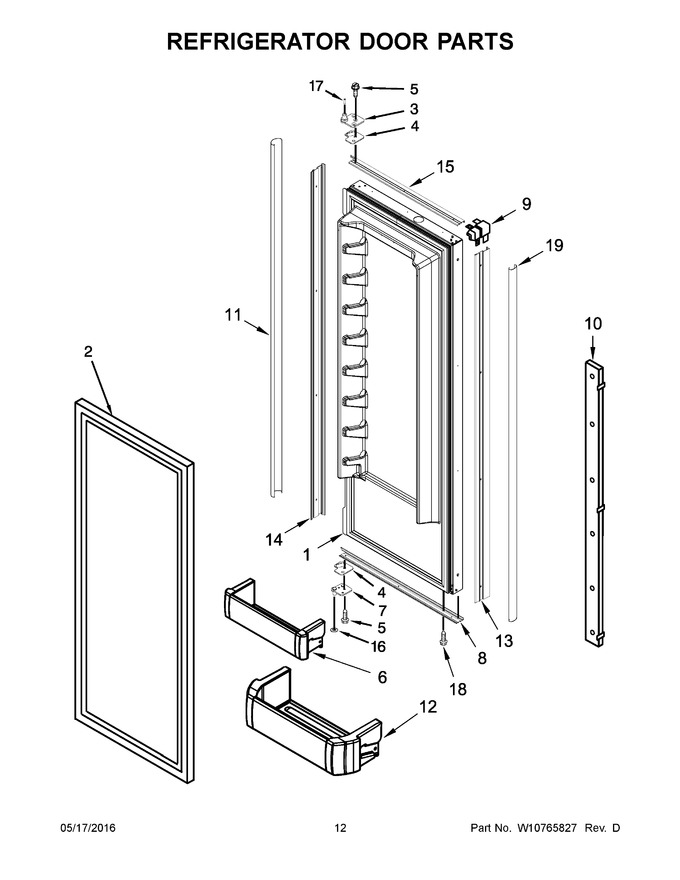

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10707769		Door, Refrigerator (left Hand)		Appelez-nous	-
2	W10600741		Gasket, Door (grey)				$ 228.32
3	W11673500		Assembly, Top Hinge   (Replaces: 2320642)			Immediately	$ 108.07
4	W11673500		Spacer, Door Hinge (bottom)   (Replaces: 2316804)			Immediately	$ 108.07
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
6	W10323598		Bin, Door				$ 104.79
7	W10273369		Assembly, Bottom Hinge (left Hand)				$ 41.21
8	2314031S		Trim, Bottom Door				$ 261.52
9	2207457		Trim, Corner				$ 57.12
10	W10757111		Assembly, Mullion				$ 123.26
11	2309022S		Cover, Side Trim (hinge Side)				$ 118.89
12	W10323746		Bin, Gallon Door				$ 108.24
13	2314030S		Trim, Door (handle Side)				$ 279.02
14	2309031S		Trim, Door (hinge Side)				$ 402.43
15	2314028S		Trim, Top Door				$ 266.68
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.76
17	W11500952		Bushing, Door Stop   (Replaces: 2316760)			Immediately	$ 34.74
18	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 11.42
19	2309021S		Cover, Side Trim (handle Side)				$ 96.86
1A	W10707770		Door, Refrigerator (right Hand)		Appelez-nous	-
7A	W10273367		Assembly, Bottom Hinge (right Hand)				$ 41.27
