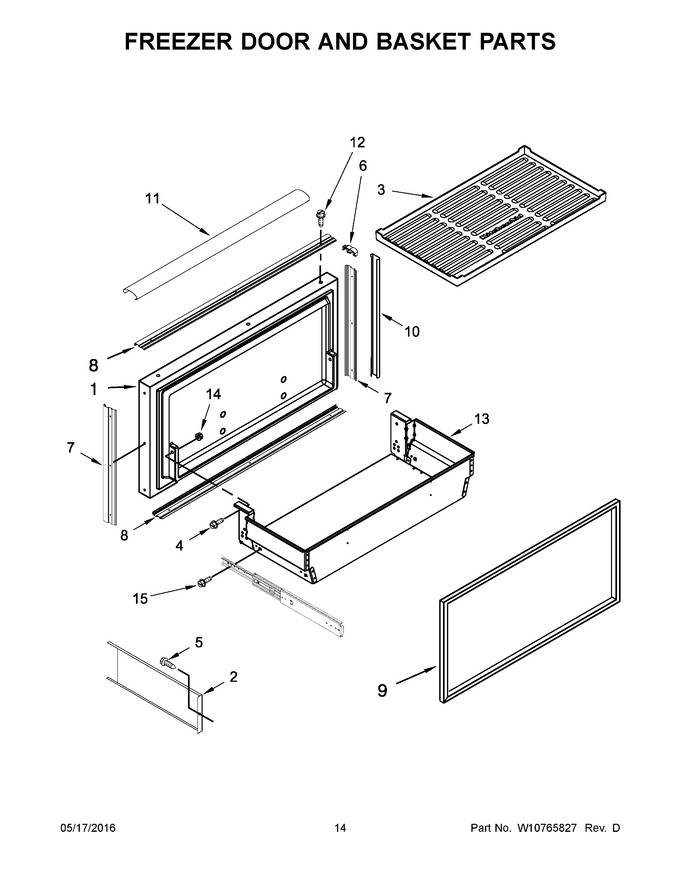

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10782357 | Door, Freezer (Replaces: W10707768) |
|
$ 871.70 | |||||
| 2 | 2317101 | Divider, Basket |
|
- | |||||
| 3 | W10665413 | Mat, Basket (grey) |
|
$ 283.65 | |||||
| 4 | W10761334 | Screw |
|
$ 13.00 | |||||
| 5 | WP488234 | Screw (Replaces: W10135792) |
|
$ 7.08 | |||||
| 6 | 2258903 | Cap, Door Corner |
|
$ 204.47 | |||||
| 7 | 2313999S | Trim, Side Door |
|
$ 216.57 | |||||
| 8 | 2313998S | Trim, Door (top & Bottom) |
|
$ 290.87 | |||||
| 9 | W10803138 | Gasket, Door (grey) (Replaces: W10600725) |
|
$ 349.30 | |||||
| 10 | 2309213S | Cover, Side Trim |
|
$ 91.94 | |||||
| 11 | 2309033S | Cover, Top Trim |
|
$ 86.05 | |||||
| 12 | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 11.42 | |||||
| 13 | W10770922 | Assembly, Freezer Basket |
|
- | |||||
| 14 | W10771111 | Nut |
|
Immediately | $ 20.25 | ||||
| 15 | W10109030 | Screw |
|
$ 15.35 |
