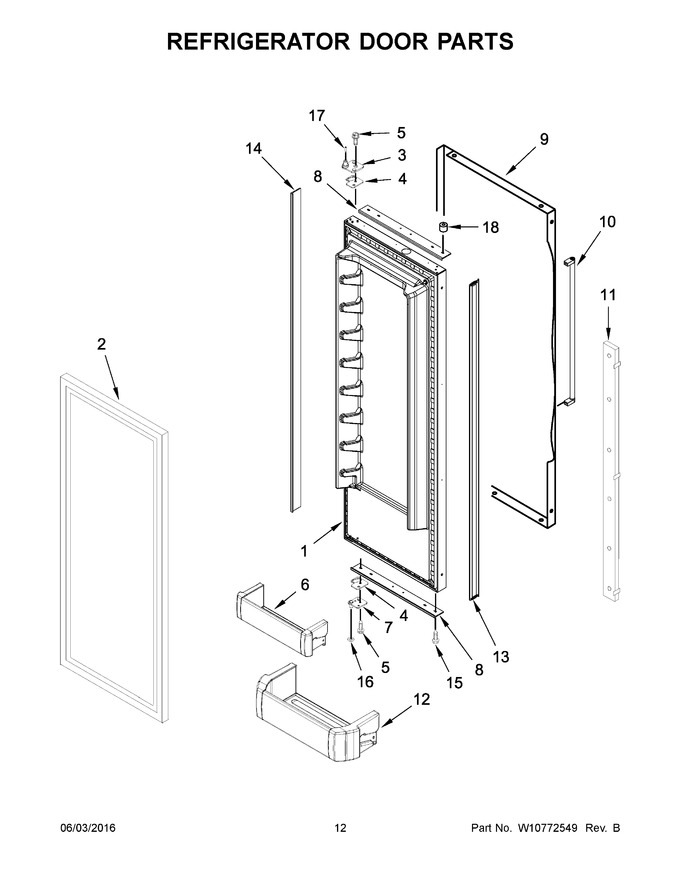

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10782300		Door, Refrigerator (includes Item 2) (left Hand)   (Replaces: W10707739)				$ 1,125.87
2	W10871887		Gasket, Door (grey)   (Replaces: W10629728)				$ 321.38
3	W11673500		Assembly, Top Hinge   (Replaces: 2320642)			Immediately	$ 130.37
4	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 130.37
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
6	W10707724		Bin, Door (shallow)		Appelez-nous	-
7	W10273369		Assembly, Bottom Hinge (left Hand)				$ 41.21
8	W10535347		Spacer Door (top And Bottom)				$ 165.29
9	W11797628		Skin, Door (stainless)   (Replaces: W10541584)		Appelez-nous	-
10	W10783284		Handle, Door (stainless)   (Replaces: W10541592)				$ 216.71
11	W10732107		Assembly, Mullion				$ 294.19
12	W10707726		Bin, Door (gallon)				$ 79.25
13	W10600736		Spacer, Door Edge (handle Side)				$ 303.66
14	W10600734		Spacer, Door Edge (hinge Side)				$ 297.16
15	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 11.42
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.76
17	W11500952		Bushing, Door Stop   (Replaces: 2316760)			Immediately	$ 34.74
18	2005433		Spacer, Door Skin (top)				$ 23.33
1A	W10782301		Door, Refrigerator (includes Item 2) (right Hand)   (Replaces: W10707741)				$ 1,125.45
7A	W10273367		Assembly, Bottom Hinge (right Hand)				$ 41.27
