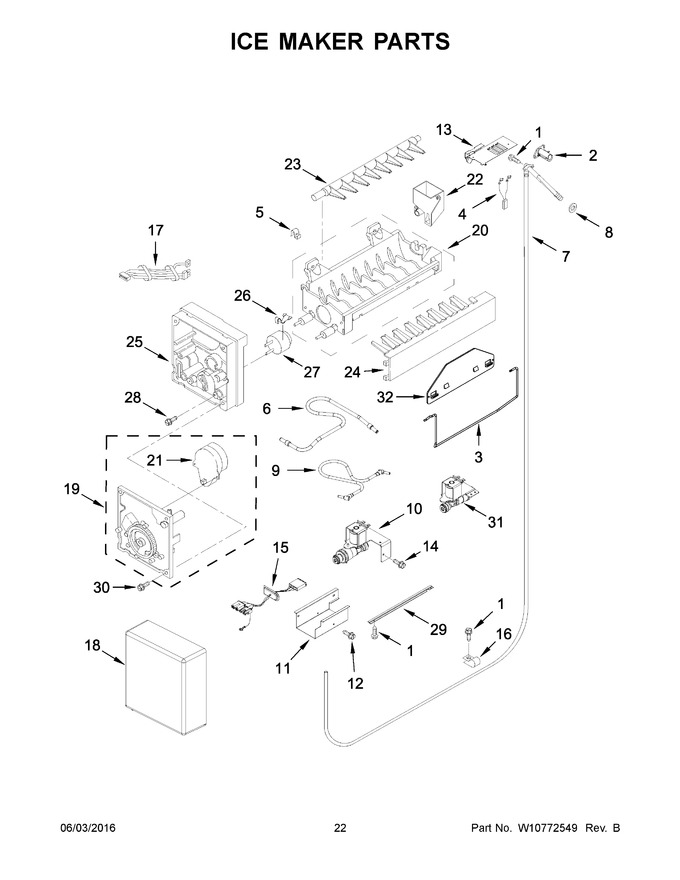

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 2 | WP2221240 | Heater, Fill Tube (Replaces: 2221240) |
|
$ 206.58 | |||||
| 3 | W11807379 | Arm, Shut Off (Replaces: 2304352) |
|
Immediately | $ 63.21 | ||||
| 4 | W10482373 | Assembly, Fill Tube Heater Wire |
|
$ 125.10 | |||||
| 5 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 6 | W10619899 | Tube, Filter Inlet |
|
$ 46.24 | |||||
| 7 | 2317847 | Assembly, Water Inlet Tube |
|
$ 86.35 | |||||
| 8 | WP1106508 | Gasket, Seal (Replaces: 1106508) |
|
Immediately | $ 10.43 | ||||
| 9 | W10635851 | Tube, Filter Outlet |
|
$ 88.57 | |||||
| 10 | W11225845 | Valve, Solenoid (Replaces: W10574769) |
|
Immediately | $ 120.60 | ||||
| 11 | W10619291 | Shield, Valve Electrical |
|
- | |||||
| 12 | WPW10141604 | Screw (Replaces: 487871) |
|
$ 8.85 | |||||
| 13 | WP2221231 | Shield, Heat (Replaces: 2221231) |
|
$ 89.33 | |||||
| 14 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 15 | W10565837 | Assembly, Water Valve Wire |
|
$ 86.39 | |||||
| 16 | WP488366 | Clip, Water Tube (Replaces: 2208136) |
|
$ 11.92 | |||||
| 17 | W10508673 | Assembly, Ice Maker Wire |
|
$ 123.63 | |||||
| 18 | WPW10289690 | Cover, Icemaker (Replaces: W10289690) |
|
Immediately | $ 8.82 | ||||
| 19 | 8201515 | Assembly, Module And Motor (Replaces: 626691) |
|
Immediately | $ 141.64 | ||||
| 20 | WPW10190929 | Assembly, Mold And Heater (also Order 542638) (Replaces: 628228) |
|
$ 233.15 | |||||
| 21 | N/P | Motor (not Available, Order #19) |
|
- | |||||
| 22 | W10392442 | Cup, Water Fill |
|
$ 30.72 | |||||
| 23 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 24 | W10788834 | Stripper, Ice (Replaces: W10699925) |
|
$ 85.24 | |||||
| 25 | WP2195914 | Support, Housing (Replaces: 2195914) |
|
$ 109.80 | |||||
| 26 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 11.60 | |||||
| 27 | WP627985 | Thermostat (Replaces: 627985) |
|
$ 114.64 | |||||
| 28 | W10001280 | Screw |
|
- | |||||
| 29 | 2320559 | Support, Valve |
|
$ 88.79 | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 31 | W11246413 | Valve, Isolation (no Flow Washer) (Replaces: W10578757) |
|
Immediately | $ 132.98 | ||||
| 32 | W11215550 | Extension, Shut Off Arm (Replaces: 2304353) |
|
Immediately | $ 45.14 | ||||
| 100 | W11397192 | Assembly, Complete Icemaker (Replaces: W10645967) |
|
Immediately | $ 274.53 |
