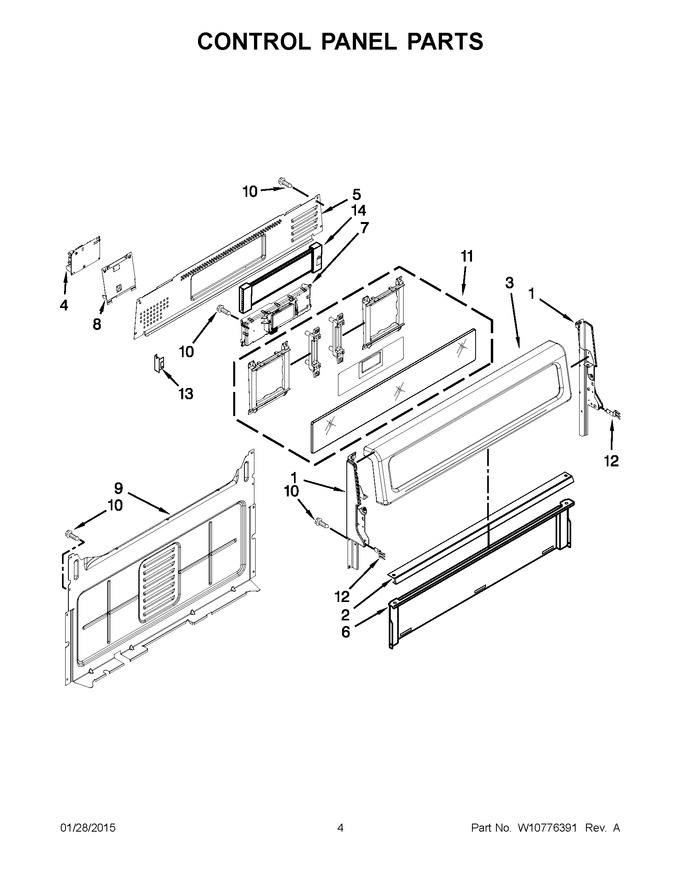

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11404310 | Endcap (black (left Hand)) (Replaces: W10409002) |
|
$ 77.00 | |||||
| 2 | W10516123 | Bracket, Console Mounting |
|
- | |||||
| 3 | W10614437 | Console, Panel (stainless) |
|
$ 137.38 | |||||
| 4 | WPW10511278 | Module, Spark Dsi (Replaces: W10511278) |
|
Immediately | $ 352.23 | ||||
| 5 | W10198745 | Cover, Upper |
|
$ 128.90 | |||||
| 6 | W10192841 | Shield, Heat |
|
$ 106.69 | |||||
| 7 | WPW10686477 | Control. Mrc2 (Replaces: W10686477) |
|
$ 396.57 | |||||
| 8 | W10516577 | Bracket, Mounting |
|
- | |||||
| 9 | W10184251 | Cover, Back |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 11 | W11431918 | Active Overlay Assembly (black) (Replaces: W10324416) |
|
$ 652.60 | |||||
| 12 | 8523412 | Bracket, Rear Cooktop |
|
$ 167.90 | |||||
| 13 | WPW10475149 | Module, Spark (5+0) (Replaces: W10475149) |
|
Immediately | $ 228.12 | ||||
| 14 | WPW10318787 | Connector, Flex (Replaces: W10318787) |
|
$ 119.94 | |||||
| 1A | W10409003 | Endcap (black (right Hand)) |
|
$ 84.09 |
