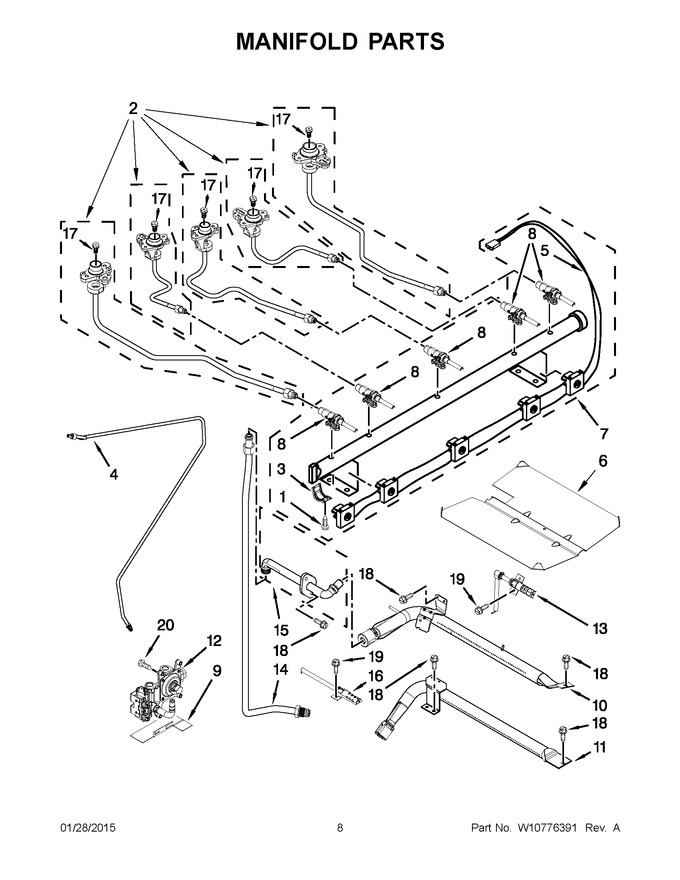

05 - Manifold Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295997		Screw, Valve				$ 7.32
2	W11234417		Assembly, Orifice Holder (15k) (right Front)   (Replaces: W10474166)				$ 100.13
3	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 22.75
4	W10510125		Tubing, Main Supply				$ 218.65
5	W10413869		Harness, Igniter Includes Switches				$ 206.44
6	3601P336-45		Baffle, Broil Burner				$ 227.09
7	W10442082		Assembly, Manifold				$ 246.34
8	W10442080		Valve Gas (18k) (left Front & Right Front)				$ 198.61
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11676566		Burner, Broiler   (Replaces: W10439242)				$ 94.98
11	W10764654		Burner, Bake   (Replaces: W10680035)			Immediately	$ 91.65
12	WPW10602004		Valve, Gas Aegis   (Replaces: W10602004)				$ 415.20
13	WPW10324262		Igniter, Bake   (Replaces: W10324262)			Immediately	$ 103.98
14	W10306050		Tubing (broiler Fitting To Valve)				$ 189.82
15	W10583216		Fitting, Broiler   (Replaces: W10319134)				$ 95.85
16	WPW10333842		Electrode, Broil   (Replaces: W10333842)			Immediately	$ 85.81
17	WPW10347414		Orifice (15k) (rf)   (Replaces: W10347414)				$ 90.50
18	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
19	W11684507		Screw   (Replaces: 3196385)				$ 14.27
20	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
17A	WPW10170506		Orifice (5k) (rr)   (Replaces: W10170506)				$ 97.85
17B	WPW10170508		Orifice (9.5k) (lr)   (Replaces: W10170508)				$ 95.21
17C	W10347415		Orifice (18k) (lf)				$ 94.71
17D	WPW10170507		Orifice (8k) (center)   (Replaces: W10170507)				$ 97.85
2A	W11700304		Assembly, Orifice Holder (5k) (right Rear)   (Replaces: W10474162)				$ 81.12
2B	W11700294		Assembly, Orifice Holder (9.5k) (left Rear)   (Replaces: W10473932)				$ 84.21
2C	W10474152		Left Front (18k) (left Front)				$ 72.51
2D	W10474170		Assembly, Orifice Holder (8k) (center)		Appelez-nous	-
8A	WPW10279614		Valve, Gas (9.5k) (left Rear And Center)   (Replaces: W10279614)				$ 279.81
8B	WPW10247744		Valve, Gas (5k) (right Rear)   (Replaces: W10247744)				$ 280.12
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WPW10170516		Lp Conversion Kit   (Replaces: W10170516)				$ 111.52
NI	W10400497		Orifice, Lp Broil				$ 46.65
NI	WPW10400494		Orifice, Lp Bake   (Replaces: W10400494)			Immediately	$ 113.46
