Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Liner (not A Serviceable Part) Appelez-nous -
2 WPW10151378 Assembly, Air Diffuser   (Replaces: W10151378) Special Order $ 311.55

3 WP2212240 Cover, Air Diffuser   (Replaces: 2212240) Special Order $ 131.57

4 W10550195 Louver Appelez-nous -
5 W10658366 Led Light Assembly, Ac/dc Appelez-nous -
6 WPW10141645 Screw   (Replaces: W10141645) Special Order $ 7.67

7 W10649522 Led Light Assembly, Dc Appelez-nous -
8 2150331 Cover, Wiring Special Order $ 24.40

9 WP2256085 Bracket, Retainer   (Replaces: 2256085) Special Order $ 34.38

10 WP488488 Screw   (Replaces: 489290) Special Order $ 7.68

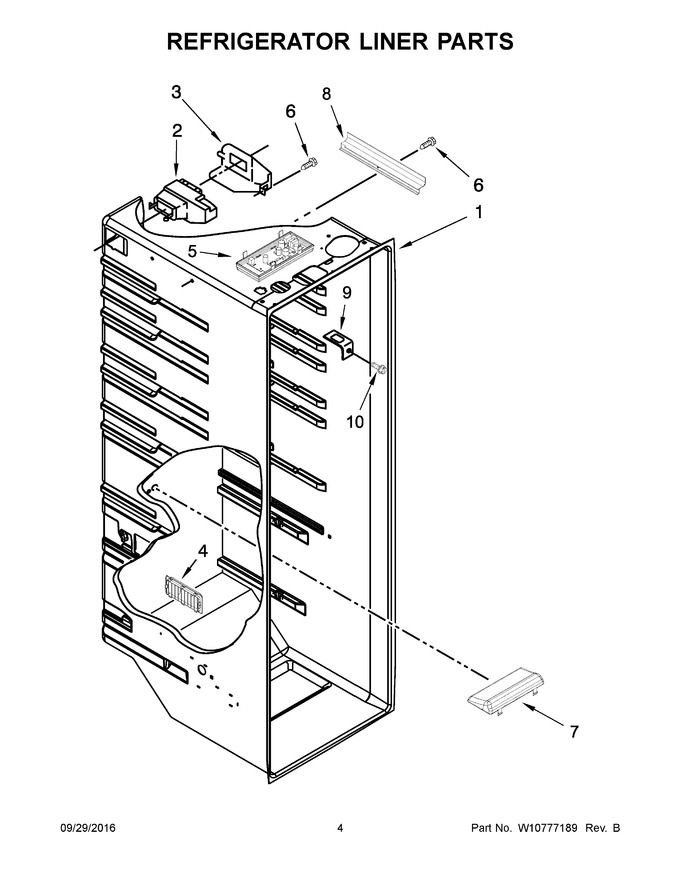

    View Diagram in Separate Window     Print Icon   Print Part List
