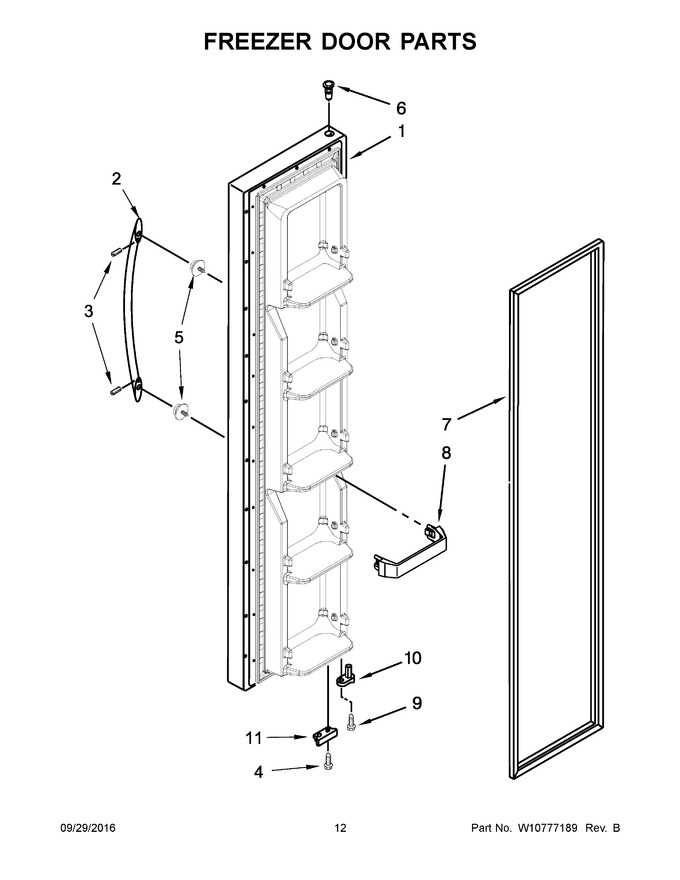

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10668578 | Freezer Door (includes Item #7) (sparkle Steel) (Replaces: W10668578) |
|
- | |||||
| 2 | WPW10439132 | Handle (stainless) (Replaces: W10439132) |
|
$ 289.38 | |||||
| 3 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 4 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 5 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 6 | WP2182181 | Thimble (Replaces: 2182181) |
|
$ 8.15 | |||||
| 7 | W10136735 | Door Gasket, Magnetic (service) (grey) (Replaces: 2327164) |
|
$ 254.84 | |||||
| 8 | WP2309718 | Trivet (Replaces: 2309718) |
|
$ 61.49 | |||||
| 9 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 10 | WP2182179 | Thimble, Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 11 | 2306940 | Bracket, Door Stop (silver) |
|
$ 101.93 |
