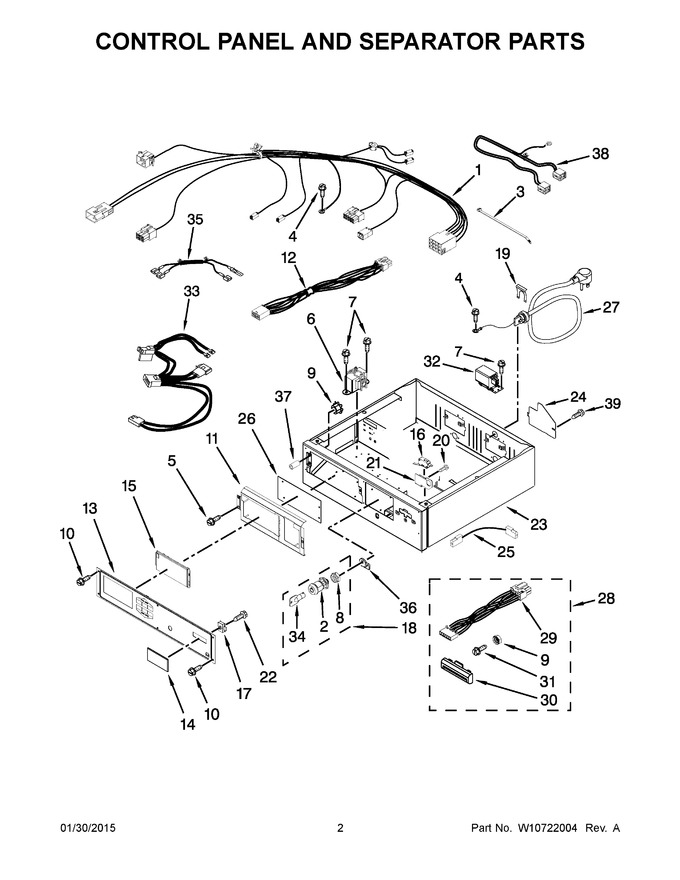

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10702047 | Harness, Collar |
|
- | |||||
| 2 | W11395752 | Nut, Hex (Replaces: W10139762) |
|
$ 13.69 | |||||
| 3 | WPW10155270 | Tie, Cable (Replaces: 8529895) |
|
$ 7.02 | |||||
| 4 | W10850756 | Screw (Replaces: 8533974) |
|
$ 8.20 | |||||
| 5 | W10756178 | Screw (Replaces: W10140652) |
|
$ 6.29 | |||||
| 6 | WPW10133285 | Transformer 120vac To 22.5vac (Replaces: W10133285) |
|
$ 214.70 | |||||
| 7 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 8 | WPW10133264 | Nut, Hex (Replaces: W10177242) |
|
$ 145.97 | |||||
| 9 | WPW10139046 | Nut (Replaces: W10139046) |
|
$ 9.23 | |||||
| 10 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 7.30 | |||||
| 11 | W10657185 | Plate, Control Mounting |
|
- | |||||
| 12 | W10111027 | Jumper, Transformer |
|
$ 48.10 | |||||
| 13 | W10858316 | Facia Console (Replaces: W10678216) |
|
$ 371.84 | |||||
| 14 | W11164066 | Cover, Card Reader (Replaces: W10137769) |
|
- | |||||
| 15 | WPW10133268 | Cover, Display (Replaces: W10133268) |
|
$ 73.93 | |||||
| 16 | WPW10447152 | Switch, Service Access (Replaces: W10447152) |
|
$ 43.26 | |||||
| 17 | W10145157 | Retainer, Facia Cover |
|
- | |||||
| 18 | WPW10133264 | Assembly, Lock Access Door (Replaces: W10133264) |
|
$ 145.97 | |||||
| 19 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 7.77 | ||||
| 20 | 3400408 | Screw |
|
- | |||||
| 21 | W10160652 | Bracket-switch |
|
- | |||||
| 22 | 3400618 | Screw |
|
$ 67.94 | |||||
| 23 | W10678213 | Collar |
|
- | |||||
| 24 | W11539855 | Cover, Terminal Block (Replaces: 3396795) |
|
Immediately | $ 629.75 | ||||
| 25 | W10769481 | Jumper, Coin Box |
|
- | |||||
| 26 | W11398779 | Control Board (Replaces: W10678217) |
|
$ 606.41 | |||||
| 27 | WPW10581952 | Power Cord (Replaces: W10581952) |
|
$ 123.69 | |||||
| 28 | W11244126 | Card Reader Conversion Kit (Replaces: W10135263) |
|
- | |||||
| 29 | WPW10239515 | Harness, Card Reader (Replaces: W10239515) |
|
$ 155.18 | |||||
| 30 | W10163036 | Bezel |
|
$ 21.42 | |||||
| 31 | WPW10143462 | Screw (Replaces: W10143462) |
|
$ 6.30 | |||||
| 32 | WPW10367632 | Filter, Rfi (Replaces: W10306592) |
|
$ 128.33 | |||||
| 33 | WP3401850 | Harness, Gas (Replaces: 3401850) |
|
$ 255.13 | |||||
| 34 | WPW10140858 | Key, Access Door (Replaces: W10140858) |
|
Immediately | $ 22.10 | ||||
| 35 | W10188051 | Jumper, Line Filter |
|
- | |||||
| 36 | W11165684 | Cam, Locking (Replaces: W10133266) |
|
$ 9.57 | |||||
| 37 | W11117166 | Standoff, Circuit Board (Replaces: W10133514) |
|
- | |||||
| 38 | W10702055 | Jumper, Lower To Collar |
|
- | |||||
| 39 | W11676450 | Screw (Replaces: 3400000) |
|
$ 14.76 |
