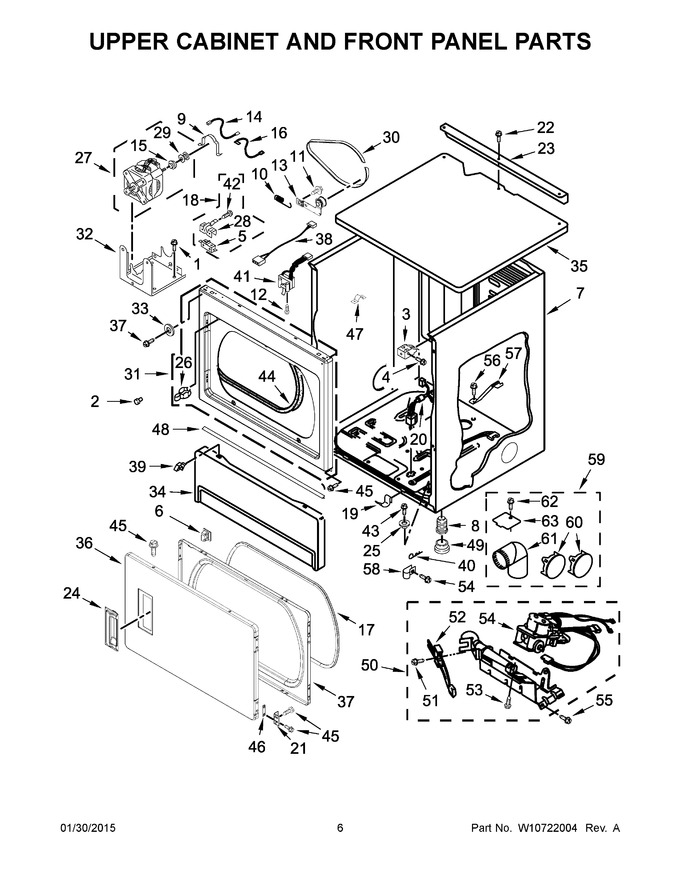

04 - Upper Cabinet And Front Panel Parts


05 - Upper And Lower Bulkhead Parts


06 - Burner Assembly


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw   (Replaces: 3390663)			Immediately	$ 7.85
2	693152		Bumper				$ 10.96
3	3391846		Clip, Front Panel				$ 21.15
4	681615		Screw   (Replaces: 3391915)				$ 13.88
5	279782		Switch - Belt   (Replaces: 3394881)			Immediately	$ 54.44
6	279570		Assembly, Door Catch   (Replaces: 3392538)			Immediately	$ 8.89
7	W11417441		Cabinet (white)   (Replaces: W10547697)				$ 419.21
8	WP689172		Foot, Dryer Plastic   (Replaces: 689172)				$ 81.44
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.83
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 24.57
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.02
12	WP3395530		Screw   (Replaces: 697773)				$ 7.70
13	WPW10344193		Pulley-idler Assembly   (Replaces: W10344193)			Immediately	$ 83.77
14	3398948		Wire, Jumper (broken Belt Switch)				$ 61.58
15	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 132.46
16	W10167612		Wire, Belt Switch				$ 12.78
17	WP3390735		Seal, Door   (Replaces: 3390735)				$ 130.60
18	279782		Switch Assembly   (Replaces: 8066134)			Immediately	$ 54.44
19	WPW10291934		Clip   (Replaces: W10291934)				$ 7.75
20	W10702046		Harness		Appelez-nous	-
21	WPW10279703		Hinge & Pin Assembly (silver)   (Replaces: W10279703)				$ 72.22
22	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.79
23	3979115		Bracket, Angle		Appelez-nous	-
24	W11209427		Handle, Door   (Replaces: W10116360)			Immediately	$ 75.75
25	3389233		Bushing		Appelez-nous	-
26	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
27	W10841144		Motor   (Replaces: W10396031)			Immediately	$ 234.31
28	WP8066120		Lever Switch   (Replaces: 8066120)			Immediately	$ 33.11
29	WP8066184		Pulley, Motor   (Replaces: 3394341)			Immediately	$ 51.02
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	W10242810		Panel, Front (white)   (Replaces: W10192882)				$ 361.07
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 133.59
33	W11089212		Washer   (Replaces: 3392186)				$ 9.67
34	WP3406797		Panel, Toe (white)   (Replaces: 697215)				$ 238.33
35	3389351		Top (white)		Appelez-nous	-
36	W11663440		Door, Front   (Replaces: W10322546)				$ 259.37
37	280083		Door, Rear   (Replaces: W10323061)				$ 287.02
38	8283298		Jumper, Door Switch				$ 83.73
39	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
40	W10117347		Cotter Pin		Appelez-nous	-
41	WPW10237959		Switch, Door   (Replaces: 3406109)			Immediately	$ 55.64
42	WP98129		Screw   (Replaces: 98129)				$ 7.56
43	3400523		Bolt, Security		Appelez-nous	-
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP488627		Screw   (Replaces: 342055)				$ 7.57
46	W10191265		Plug, Hinge (white)				$ 44.28
47	WP98997		Clip   (Replaces: 98997)				$ 11.09
48	W10576519		Seal, Deflector		Appelez-nous	-
49	WP3391943		Boot, Foot   (Replaces: 3391943)				$ 7.82
50	3401797		Burner Assembly (60 Hz)		Appelez-nous	-
51	WPW10366705		Screw   (Replaces: 3393909)				$ 7.50
52	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
53	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 7.19
54	279923		Valve, Gas (complete) 60 Hz   (Replaces: 8281911)			Immediately	$ 286.03
55	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.85
56	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
57	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
58	3387561		Clamp, Pipe		Appelez-nous	-
59	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.65
60	W10470674		Multivent Plug (white)   (Replaces: 697750)			Immediately	$ 76.65
61	279731		Elbow (4")		Appelez-nous	-
62	WP488729		Screw   (Replaces: 488729)			Immediately	$ 7.79
63	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 8.96
