View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

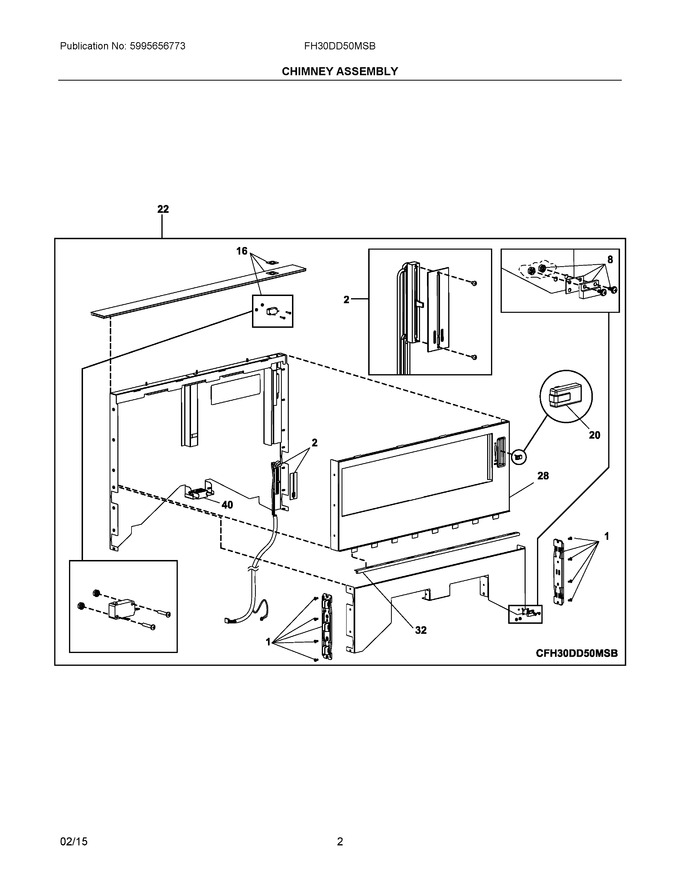

02 - Chimney Assembly
03 - Body/motor Parts
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304500762 | Guide Assy, Shoe Kit |
|
- | |||||
| 2 | 5304487429 | Switch Kit, Blower, W/harness, & Screws |
|
- | |||||
| 8 | 5304487435 | Magnet Kit, Reed, W/instructions, & Screws |
|
- | |||||
| 16 | 5304487441 | Trim Assy, Top, 30", W/membrane, & Lift Switch |
|
- | |||||
| 20 | 5304487445 | Knob, Fan Control |
|
- | |||||
| 22 | 5304500763 | Chimney Assy, Complete, 30 |
|
- | |||||
| 28 | 5304487455 | Panel, Chimney, 30 |
|
- | |||||
| 32 | 5304487459 | Seal Kit, Chimney, 30 |
|
- | |||||
| 40 | 5304487525 | Nut, Drive |
|
- |
