View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Chimney Assembly

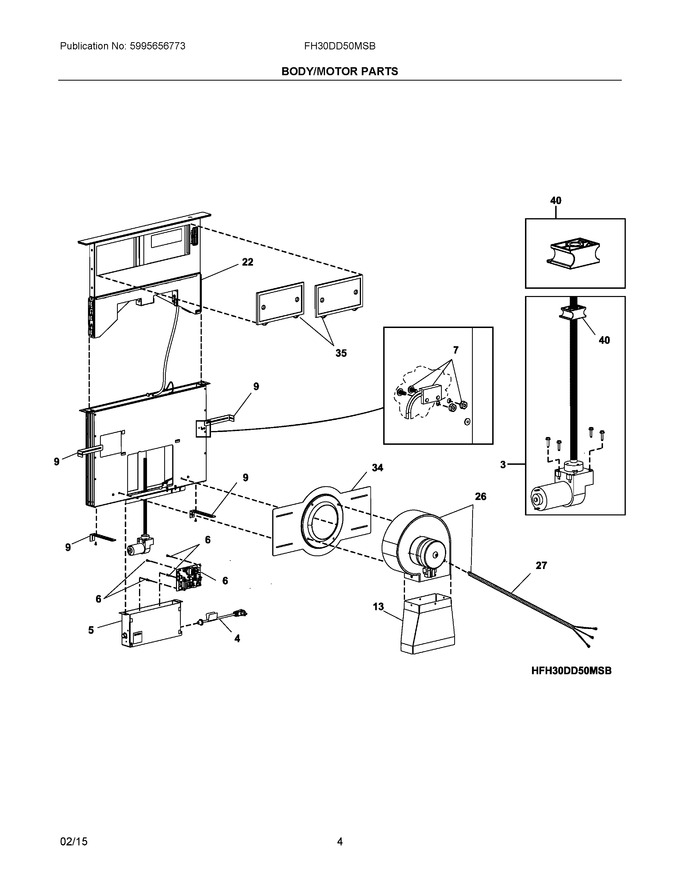

03 - Body/motor Parts
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5304487430 | Motor Kit, Lift, W/screws, & Drive Nut |
|
$ 498.06 | |||||
| 4 | 5304487431 | Cord Assy, Power |
|
- | |||||
| 5 | 5304487432 | Box Assy, Control, W/cover, & Screws |
|
- | |||||
| 6 | 5304500764 | Board Kit, Control, W/standoffs, & Mini Manual |
|
$ 720.15 | |||||
| 7 | 5304487434 | Switch Kit, Reed, W/instructions, & Screws |
|
$ 313.02 | |||||
| 9 | 5304487436 | Bracket Kit, Cabinet, W/screws |
|
- | |||||
| 13 | 5304487438 | Duct, Blower, Transition |
|
- | |||||
| 22 | 5304500763 | Chimney Assy, Complete, 30 |
|
- | |||||
| 26 | 5304487452 | Blower Assy, Complete, W/harness |
|
- | |||||
| 27 | 5304487454 | Wiring Harness, Assy, W/conduit, & Bushing |
|
- | |||||
| 34 | 5304487461 | Plate, Fan, Slide |
|
- | |||||
| 35 | 5304487462 | Filter Kit, 30 |
|
- | |||||
| 40 | 5304487525 | Nut, Drive |
|
- |
